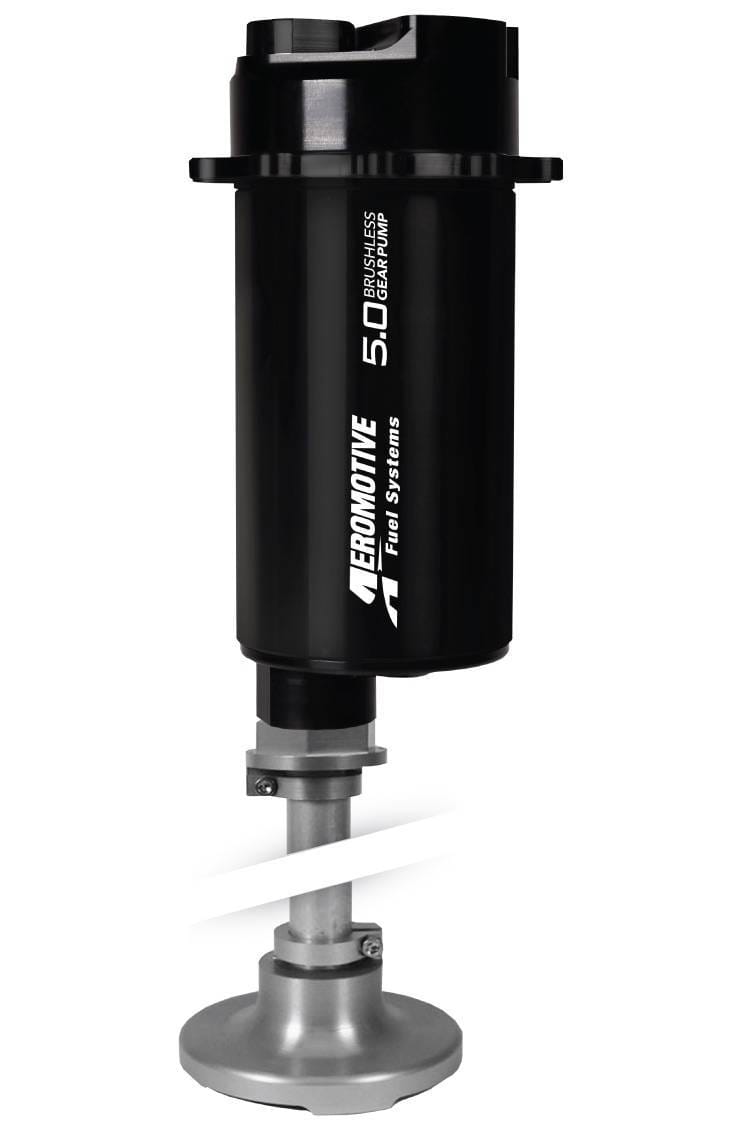

Aeromotive 5 Gpm Brushless In-Tank Fuel Pump

The market leader in fuel delivery systems and components, Aeromotive introduces its first brushless fuel pump series. The 5.0 Brushless Stealth Pump, the flagship of Aeromotive electric fuel pumps, yields 5 gallons per minute at 13.5-V and 40-PSI. Built for up to 90 psi of sustained pressure, this new pump features our integral, internal Spur-Gear pumping mechanism which allows for higher pressures with minimal drop in flow. Aeromotive is proud to offer this new 5.0 Brushless Stealth Pump, which is the single, highest flowing electric fuel pump available on the market today.
Features:
Lighter than the traditional Pro-Series pumps.
Reduced current draw at higher, EFI pressures.
Extended service life in methanol and ethanol.
New integral spur-gear pumping mechanism.
90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
ORB-10 outlet port.
Requires straight 12-VDC to 16-VDC power supply.
Not compatible with pulse modulated systems or fuel pump speed controllers. 5 GPM Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Fuel Injected Forced Induction Gas 1800 2700 Carbureted Naturally Aspirated E85 1512 2380 Fuel Injected Naturally Aspirated Gas 2340 3600 Fuel Injected Forced Induction E85 1260 1890 Fuel Injected Forced Induction Gas 1620 2600 Carbureted Forced Induction E85 1134 1820 Carbureted Naturally Aspirated Gas 2160 3400 Fuel Injected Naturally Aspirated E85 1638 2520
