Aeromotive 340lph Phantom In-Tank Complete Fuel System - For Carbureted Applications

These new Phantom Carbureted Fuel Systems include all main fuel system components required to create a proper carbureted fuel system, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump. Each system ships with the proper carbureted bypass fuel pressure regulator, high flow billet fuel filter, filter mounting bracket, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

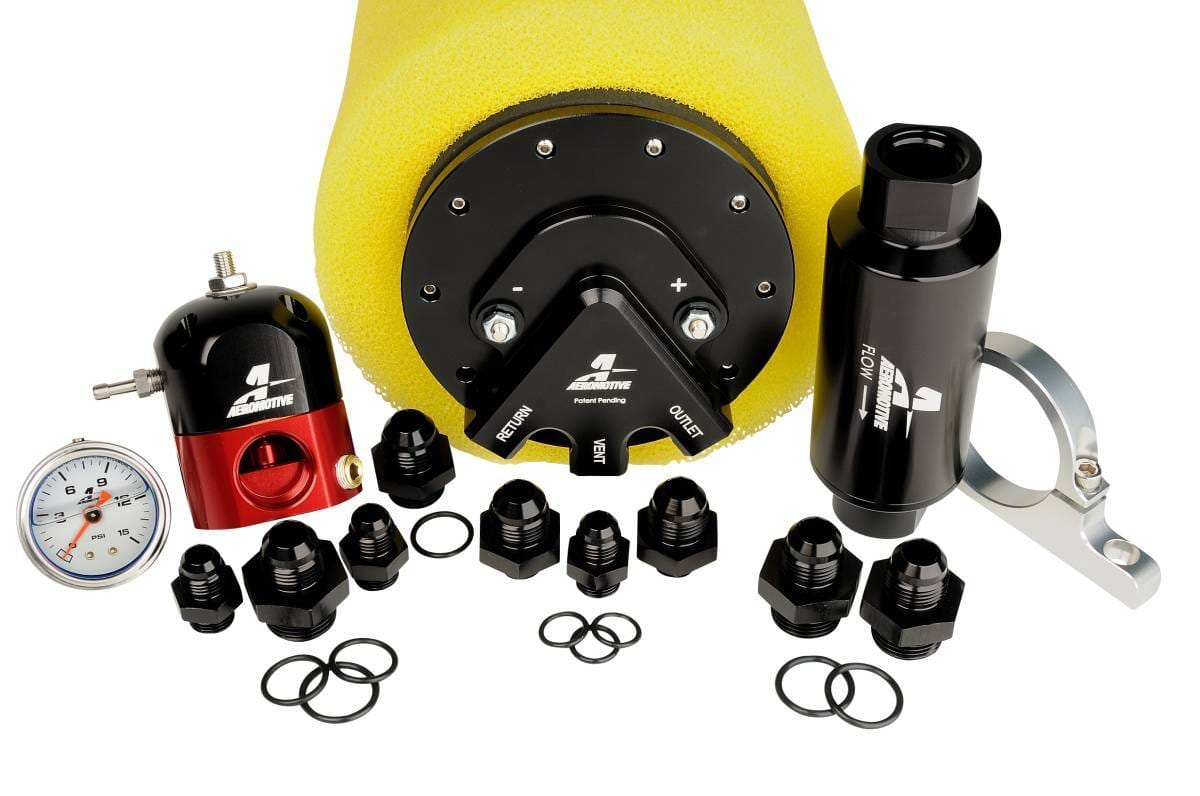

This kit contains the following parts:
1ea Phantom 340
1ea Filter 10 micron Paper
1ea Filter Bracket
1ea Regulator, ByPass, Carb.

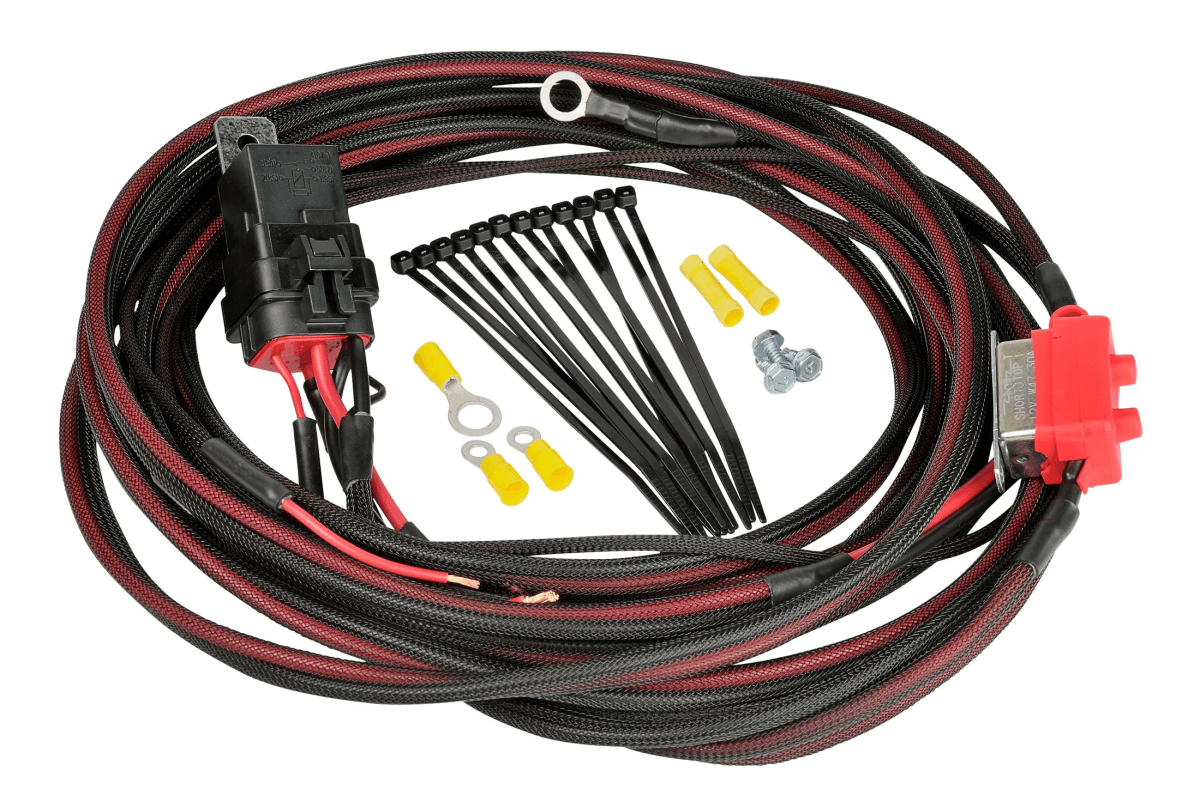

1ea Fuel Pump Wiring Kit.
3 ea AN-06 ORB to AN-06 flare
1 ea AN-08 ORB to AN-08 flare
3 ea AN-10 ORB to AN-08 flare
1ea AN-06 Port Plug
2ea AN-06 ORB to AN-08 flare
1 ea 0-15 PSI Pressure Gauge 340 LPH Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Carbureted Forced Induction Gas 400 850 Carbureted Naturally Aspirated E85 325 700 Carbureted Naturally Aspirated Gas 500 1000 Carbureted Forced Induction E85 220 595
