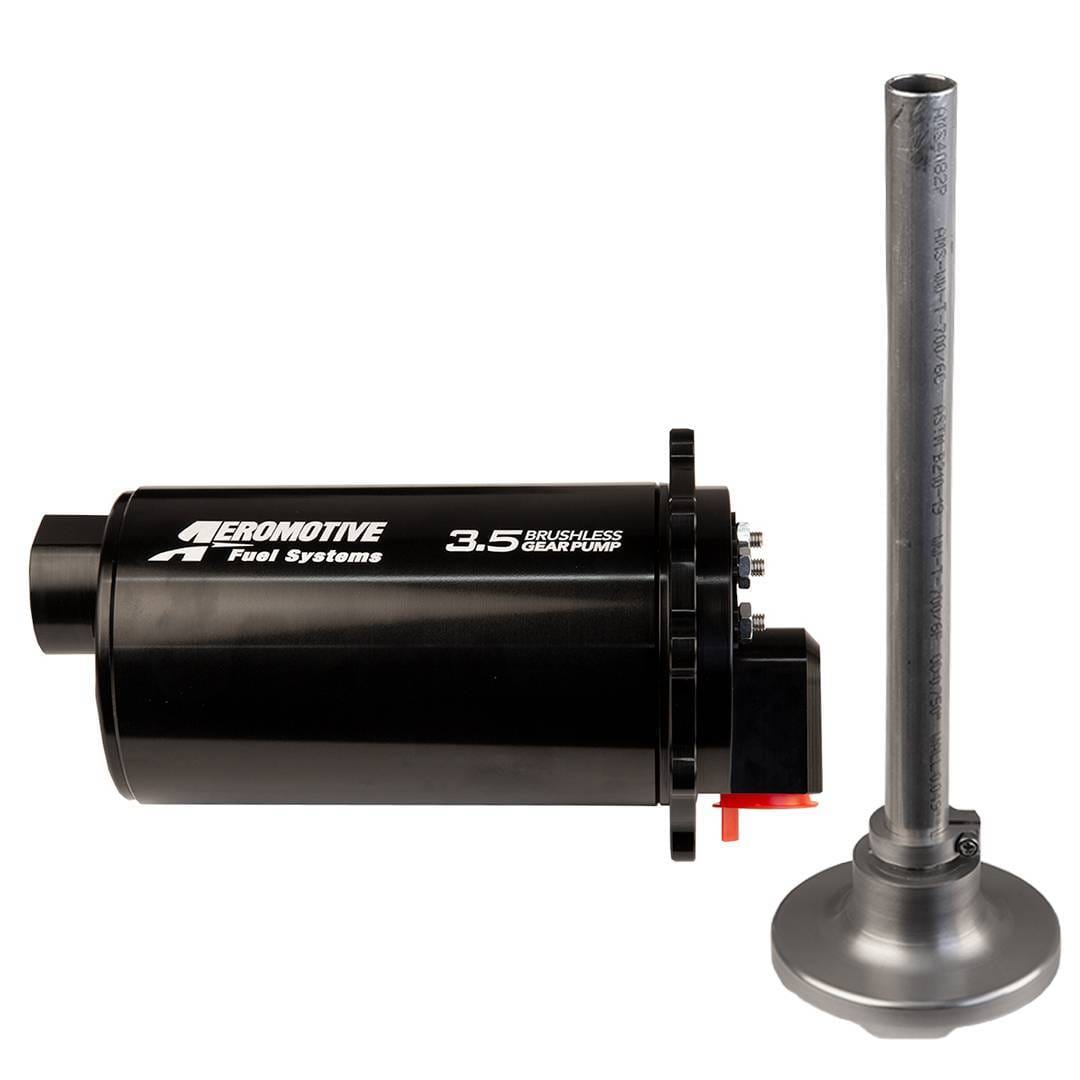

Aeromotive 3.5 Gpm Brushless In-Tank Fuel Pump With True Variable Speed Controller - 90 Degree Outlet

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
Features:
Lighter than the traditional Pro-Series pump.
Reduced current draw at higher, EFI pressures.
Extended service life in methanol and ethanol.
New integral spur-gear pumping mechanism.
90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.
ORB-10 outlet port.
Requires straight 12-VDC to a 16-VDC power supply.
Not compatible with pulse-modulated systems or fuel pump speed controllers.

Instructions
