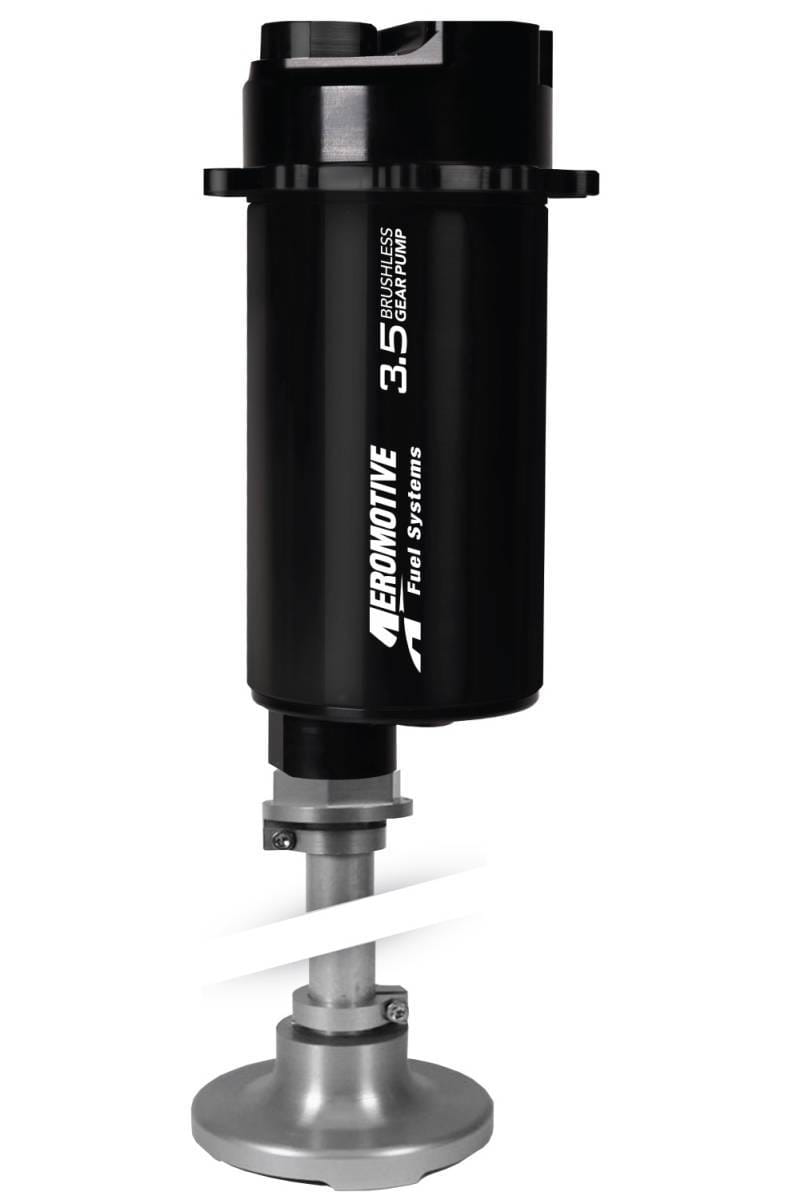

Aeromotive 3.5 Gpm Brushless In-Tank Fuel Pump

The market leader in fuel delivery systems and components, Aeromotive introduces its first brushless fuel pump series. The 3.5 Brushless Gear pump provides the Pro-Series Fuel Pump performance the world has come to trust and depend on, now available with the latest Spur-Gear pumping mechanism and brushless-motor technology. Built for up to 90 psi of sustained pressure, this new pump supports Pro-Series flow at higher pressures with minimal drop in flow. This new brushless spur-gear pump is able to move more fuel and sustain higher pressures without failure.
Features:
Lighter than the traditional Pro-Series pump.
Reduced current draw at higher, EFI pressures.
Extended service life in methanol and ethanol.
New integral spur-gear pumping mechanism.
90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
ORB-10 outlet port.
Requires straight 12-VDC to 16-VDC power supply.
Not compatible with pulse modulated systems or fuel pump speed controllers. 3.5 GPM Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Fuel Injected Forced Induction Gas 1360 2000 Carbureted Naturally Aspirated E85 1064 1680 Fuel Injected Naturally Aspirated Gas 952 1260 Fuel Injected Forced Induction E85 1840 2600 Fuel Injected Forced Induction Gas 1520 2400 Carbureted Forced Induction E85 952 1400 Carbureted Naturally Aspirated Gas 1120 1800 Fuel Injected Naturally Aspirated E85 1288 1820
