Aeromotive 2007-2012 Ford Mustang Gt500 With 5.4l Cobra Jet Engine Swap A1000 In-Tank Fuel System - Race Fuel Rated

This Mustang Stealth Fuel System includes the Aeromotive Stealth Eliminator fuel pump, designed to fit inside the stock, OEM Mustang tank and integrate with the stock fuel-level sending unit and jet-siphon transfer pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings. Fuel Pump Electrical Supply is also provided, including our amazing Fuel Pump Speed Controller, designed to keep fuel cool in cars that will see extended street driving, but still need full pump performance for all out racing. Fuel Lines and Hose-Ends sold separately. The purchase of a Tach Adapter will be required to operate Pump Speed Controller. Rated for EFI engines producing up to 1,400 Flywheel HP Forced Induction or 1,900 Flywheel HP Naturally Aspirated. For Ford Mustang's with 4.6L 3V Engine Swap. Includes Aeromotive’s Fuel Pump Speed Controller for continuous duty street/strip applications.

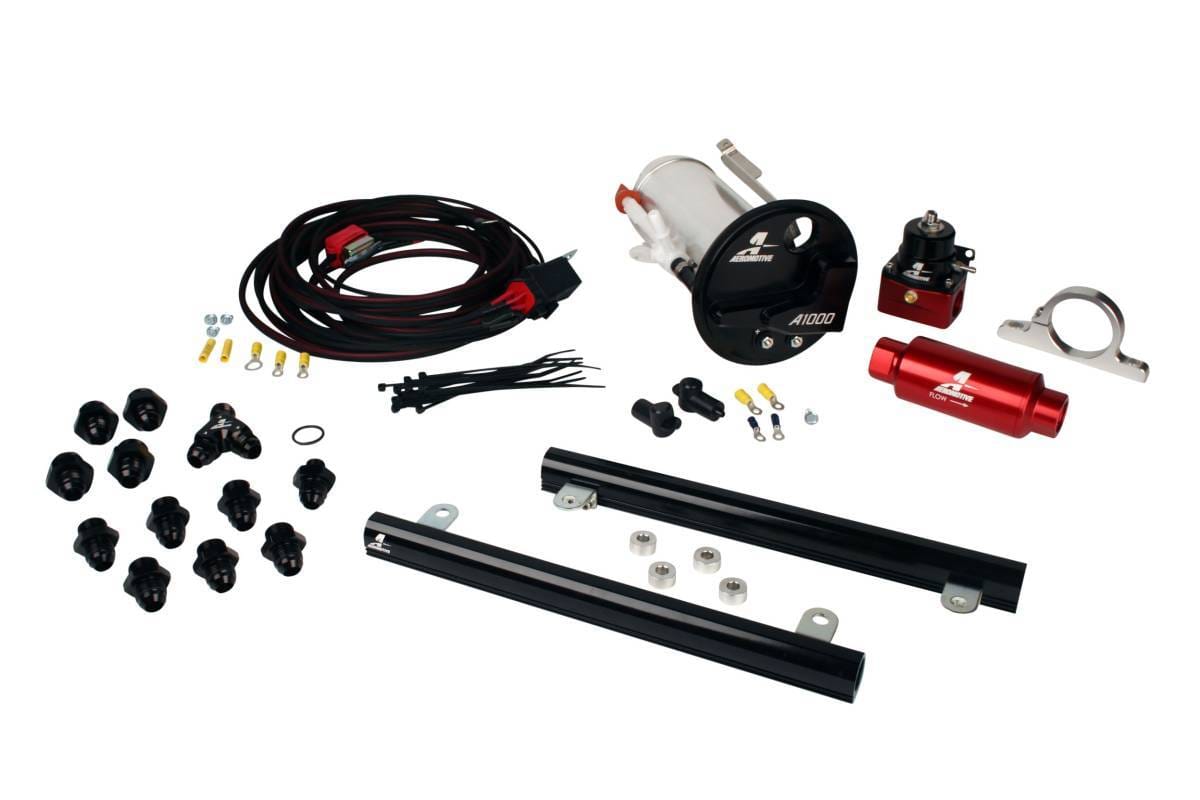

What's Included In The Box?
5.4L Cobra Jet Fuel Rails - Black Finish
Fuel Pressure Regulator
Fuel Pump Assembly
Filter Assembly, 40-micron - Red Finish
Fuel Pump Speed Controller
One-Way Check Valve
(6) ORB-08 to AN-08 Fittings
(4) ORB-10 to AN-08 Fittings
ORB-06 to AN-08 Fitting
Y-Block, AN-08
AN-10 O-Ring A1000 Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Fuel Injected Forced Induction Gas 600 1000 Carbureted Naturally Aspirated Gas 800 1500 Fuel Injected Naturally Aspirated E85 500 910 Fuel Injected Naturally Aspirated E85 600 1050 Fuel Injected Naturally Aspirated Gas 720 1300 Carbureted Forced Induction Gas 700 1200 Carbureted Forced Induction E85 500 840 Fuel Injected Forced Induction E85 400 700

Instructions
