Aeromotive 2003-2013 Chevy Corvette C6 Ls3 Complete A1000 In-Tank Fuel System

This Corvette Stealth Fuel System includes the Aeromotive Stealth A1000 fuel pump, designed to fit seamlessly inside the OEM Corvette tank, working with the stock fuel-level sender and jet-siphon pump. It features all essential components: the Stealth in-tank pump, 40-micron high-flow filter, one-piece CNC Y-block, billet fuel rails, billet EFI pressure regulator, and necessary Aeromotive high-flow fittings. The system also includes an electrical supply and the Fuel Pump Speed Controller for maintaining fuel temperature during street driving while delivering full performance for racing. Note: This product is not legal for sale or use on emission-controlled vehicles unless as a direct OEM replacement. Fuel lines and hose-ends are sold separately, and a tach adapter may be required for the speed controller. Rated for EFI engines producing up to 1,400 Flywheel HP Forced Induction or 1,900 Flywheel HP Naturally Aspirated. For Corvette’s equipped with LS3 engine and/or equivalent intake. Includes Aeromotive’s Fuel Pump Speed Controller for continuous duty street/strip applications.

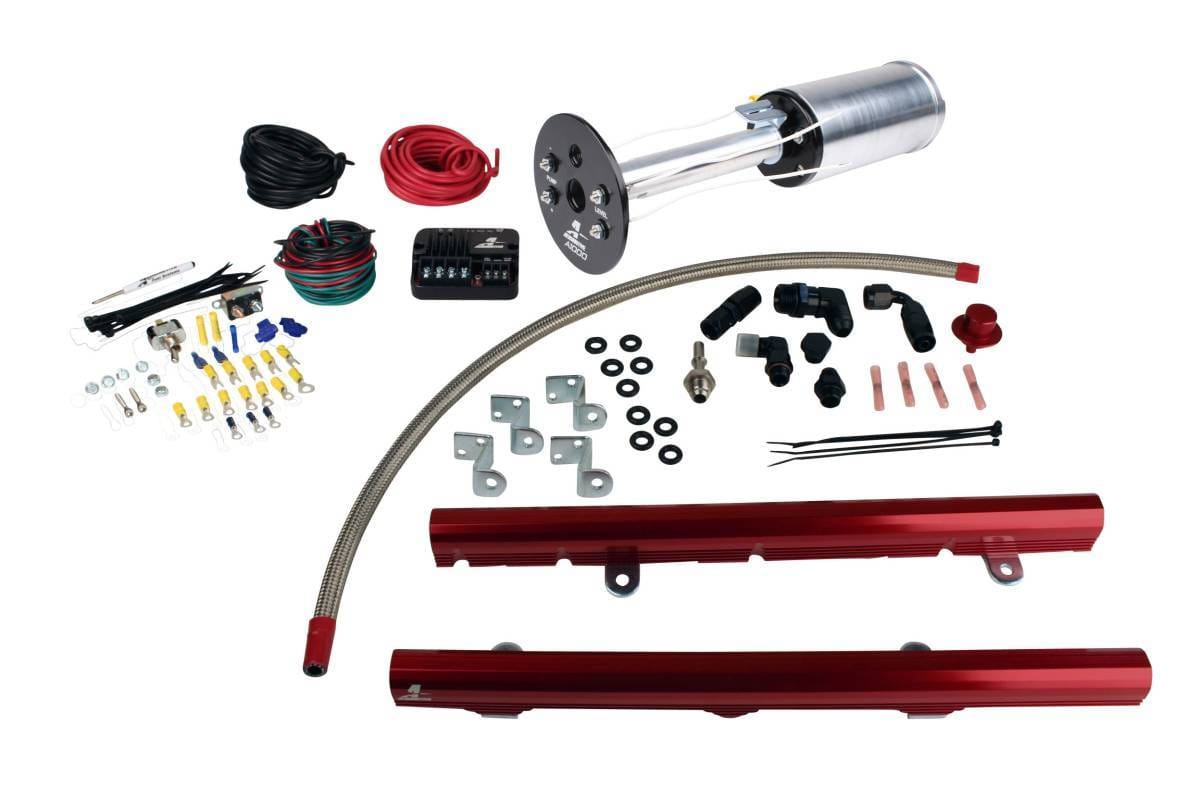

What's Included In The Box?
LS3 Fuel Rails - Red Finish
Fuel Pressure Regulator
Fuel Pump Assembly
Fuel Pump Speed Controller
Filter Bracket
Filter Assembly, 40-micron
One-Way Check Valve
AN-06 Union Fitting
ORB-10 to AN-06 Fitting
(4) ORB-08 to AN-08 Fittings
(4) ORB-10 to AN-08 Fittings
Y-Block, AN-08
AN-10 O-Ring Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Fuel Injected Forced Induction Gas 600 1000 Carbureted Naturally Aspirated Gas 800 1500 Fuel Injected Naturally Aspirated E85 500 910 Fuel Injected Naturally Aspirated E85 600 1050 Fuel Injected Naturally Aspirated Gas 720 1300 Carbureted Forced Induction Gas 700 1200 Carbureted Forced Induction E85 500 840 Fuel Injected Forced Induction E85 400 700

Instructions
