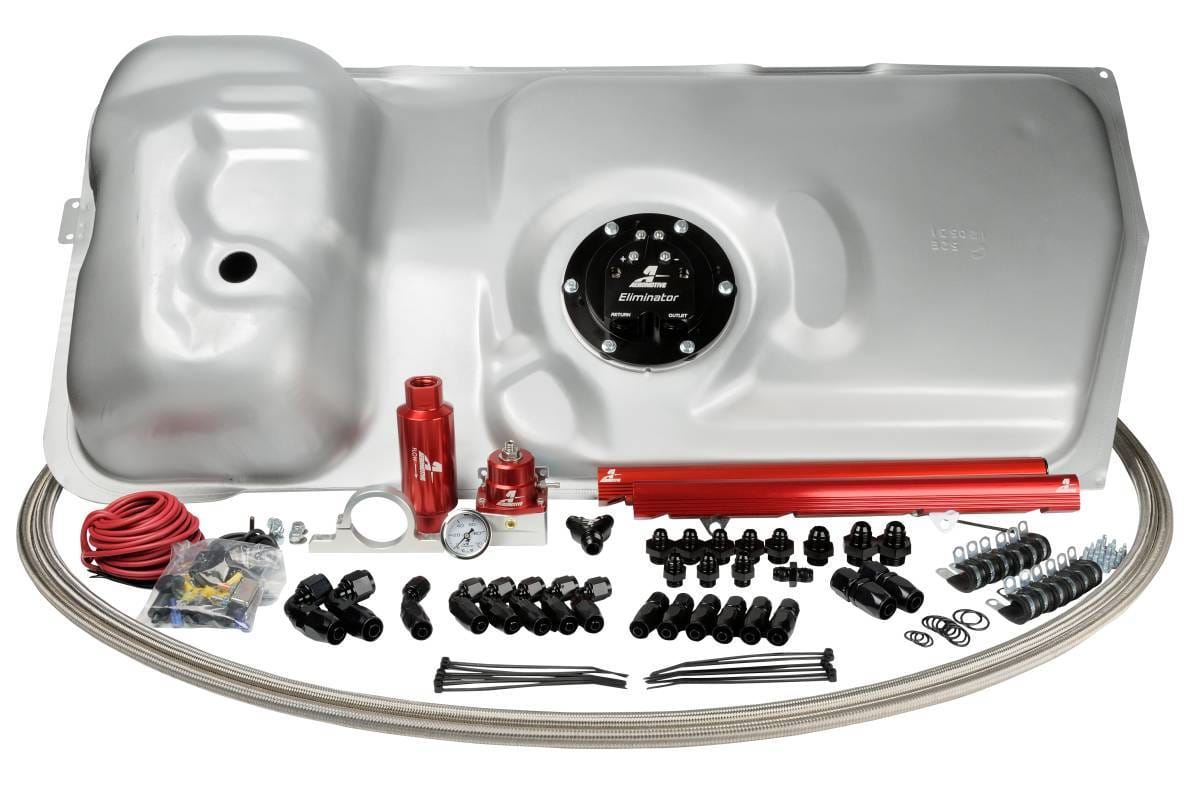

Aeromotive 1986-1998 Ford Mustang 5.0l Drop-In Fuel Tank W/ Built-In Billet Eliminator Fuel Pump

In 2003, Ford developed a specialized fuel tank for the 2003 and 2004 Mustang Cobras. While it looked like a standard tank from the outside, it featured one of the most advanced internal baffling systems we’ve seen from an OE tank to date. In late 2011, Ford discontinued these tanks, and at Aeromotive, we saw an opportunity to reproduce them. Not only do we offer reproduction 2003-2004 Cobra tanks, but we also modified the tooling during production to make this tank compatible with all Fox Body Mustangs. And that’s exactly what we did. We even went a step further by designing specific A1000 and Eliminator Fuel Pumps that bolt directly into the top of these tanks. We then created a complete system under one part number, providing everything needed to install a full Aeromotive Fuel System in your Fox Body. These Fox Body Stealth tanks offer optimal performance while maintaining the appearance of a stock tank. With our proven A1000 or Eliminator fuel pumps built directly into the tank, you can choose either option for a fuel system that looks stock but features an innovative baffling system, an integrated fuel pump capable of supporting nearly any horsepower demand, and a pre-pump filter. These tanks and systems are a direct bolt-in for 1986-1998.5 Ford Mustangs. Although the Fox Body was produced from 1979 through 2004, some modifications may be necessary for these systems to be direct bolt-ins for certain years. See the notes below for specific year information.
What's Included In The Box?
Built in Eliminator Fuel Pump
100-Micron Stainless Steel Pre Filter
(1) ORB-08 Outlet Port & (1) ORB-08 Return Port
Bolts right into factory location using factory tank straps
EFI Bypass Regulator - Red Finish
10-Micron Post Pump Filter - Red Finish
2" Billet Filter Bracket
1986-1995 5.0L GT & Cobra Fuel Rail Kit - Red Finish
Complete Fuel Pump Wiring Kit
All of the necessary port fittings
Enough AN-08 Fuel Line and Hose-Ends for a complete and total installation Year specifications:
For 1979-1985 Mustangs, you must use an 1986 or later leveling unit and aftermarket fuel level gauge. (73-10 Ohm)
For 1998.5-2004 Mustang Stealth Tanks are coming soon. If you have a factory 2003 or 2004 Cobra or Cobra Fuel Tank, it is a direct bolt-in to your car.
(Requires the use of 03-04 Cobra fuel level sending unit as well) Recommended Parts:
Considering an engine swap or have a 96-98.5 4.6L? These Complete Fuel System are still the best choice. Just choose an additional fuel rail kit from our extensive line-up of fuel rails and add that to your order. Here are a couple examples: P/N 14103 - 96-04 4.6L SOHC GT Fuel Rail Kit or... P/N 14104 - 96-98.5 4.6L DOHC Cobra Fuel Rail Kit Eliminator Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Fuel Injected Forced Induction Gas 850 1400 Carbureted Naturally Aspirated E85 892 1610 Fuel Injected Naturally Aspirated Gas 1105 1900 Carbureted Forced Induction E85 714 1190 Carbureted Forced Induction Gas 1020 1700 Fuel Injected Naturally Aspirated E85 773 1330 Carbureted Naturally Aspirated Gas 1275 2300 Fuel Injected Forced Induction E85 595 1190

Install Instructions
