Acura Integra 750cc Fuel Injectors 1986-1991

These RC Engineering 750cc High Resistance Saturated fuel injectors are flow matched and will fit every model, engine, type or style for the following vehicles:

1986-1991 Acura Integra
Must remove OEM resistor box and use OBD1 style injector connecting plugs

Part # SH4-750

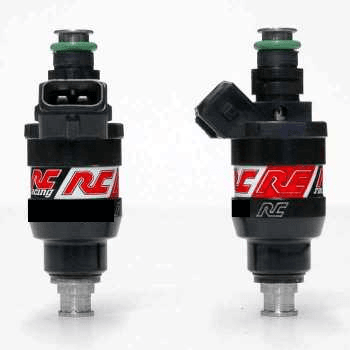

Included: 4 Honda style injectors, spacers and flow sheets. The photo is an example of a similar set.

Note:
If you need new OBD1 Bosch EV1 center notch style injector clips they are available - additional $19.95.

Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes

Specifications
Flow Rate in CC per minute: 750CC/min @ 43.5 PSI
Flow Rate in LB per hour: 71LBS/HR @ 43.5 PSI
Resistance: 12.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: SH4-750
Spacers/O-rings Included: Yes
Warranty: 1 year warranty!
