Acura Integra 1000cc Fuel Injectors 1986-1991

These RC Engineering 1000cc Low Resistance Peak and Hold fuel injectors are flow matched and will fit every model, engine, type or style for the following vehicles:

1986-1991 Acura Integra
OBD1 style injector connecting plugs are REQUIRED

Part # PL4-1000

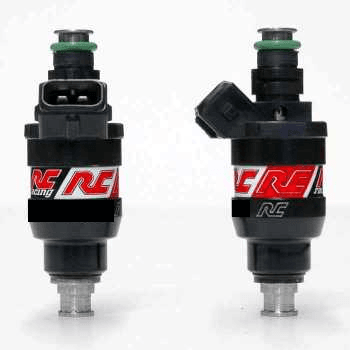

Included: 4 Honda style injectors, spacers and flow sheets. The photo is an example of a similar set.

Notes:
1) You must have your computer setup for low impedance.
2) REQUIRED OBD1 Bosch EV1 center notch style injector clips - additional $19.95.

Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes

Specifications
Flow Rate in CC per minute: 1000CC/min @ 43.5 PSI
Flow Rate in LB per hour: 95LBS/HR @ 43.5 PSI
Resistance: 2.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: Peak 4.0 Amps / Hold 1.5 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: PL4-1000
Spacers/O-rings Included: Yes
Warranty: 1 year warranty!
