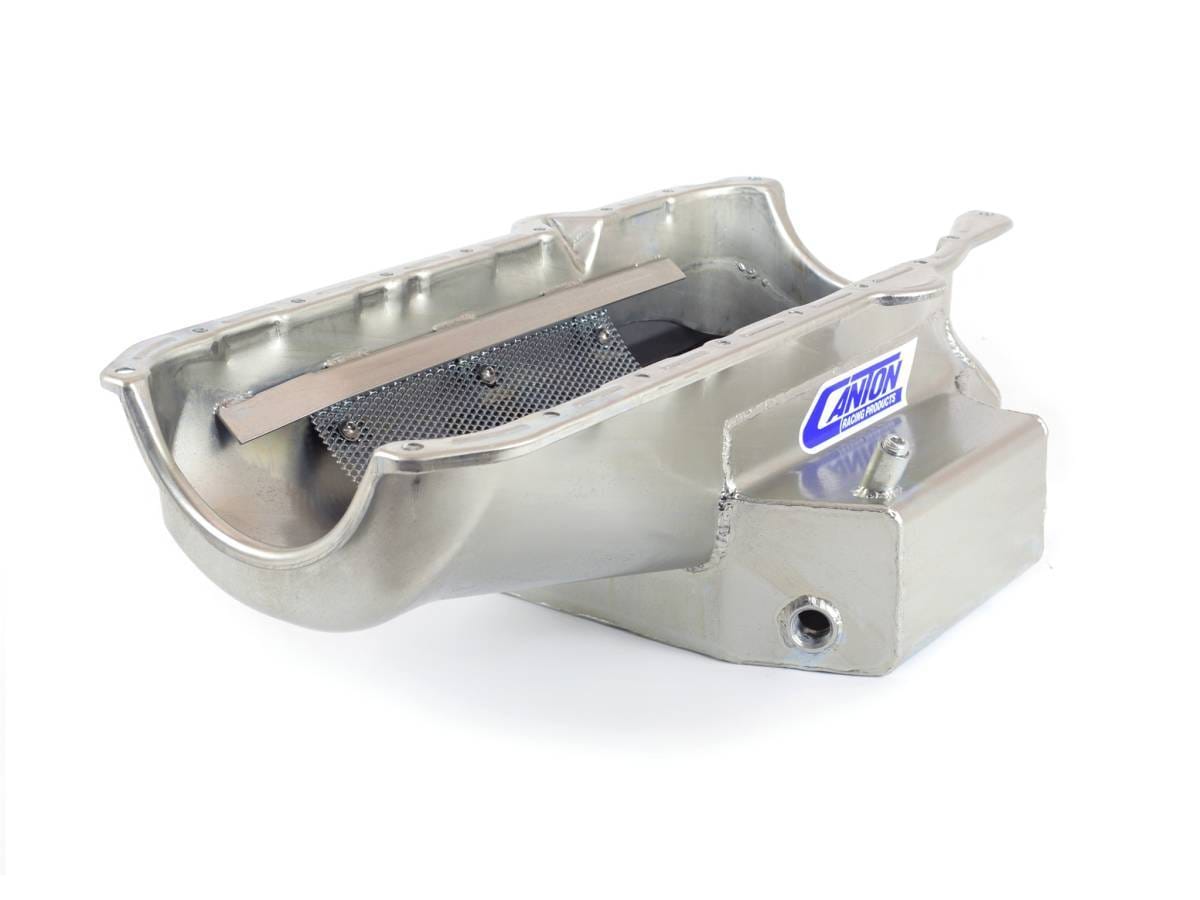

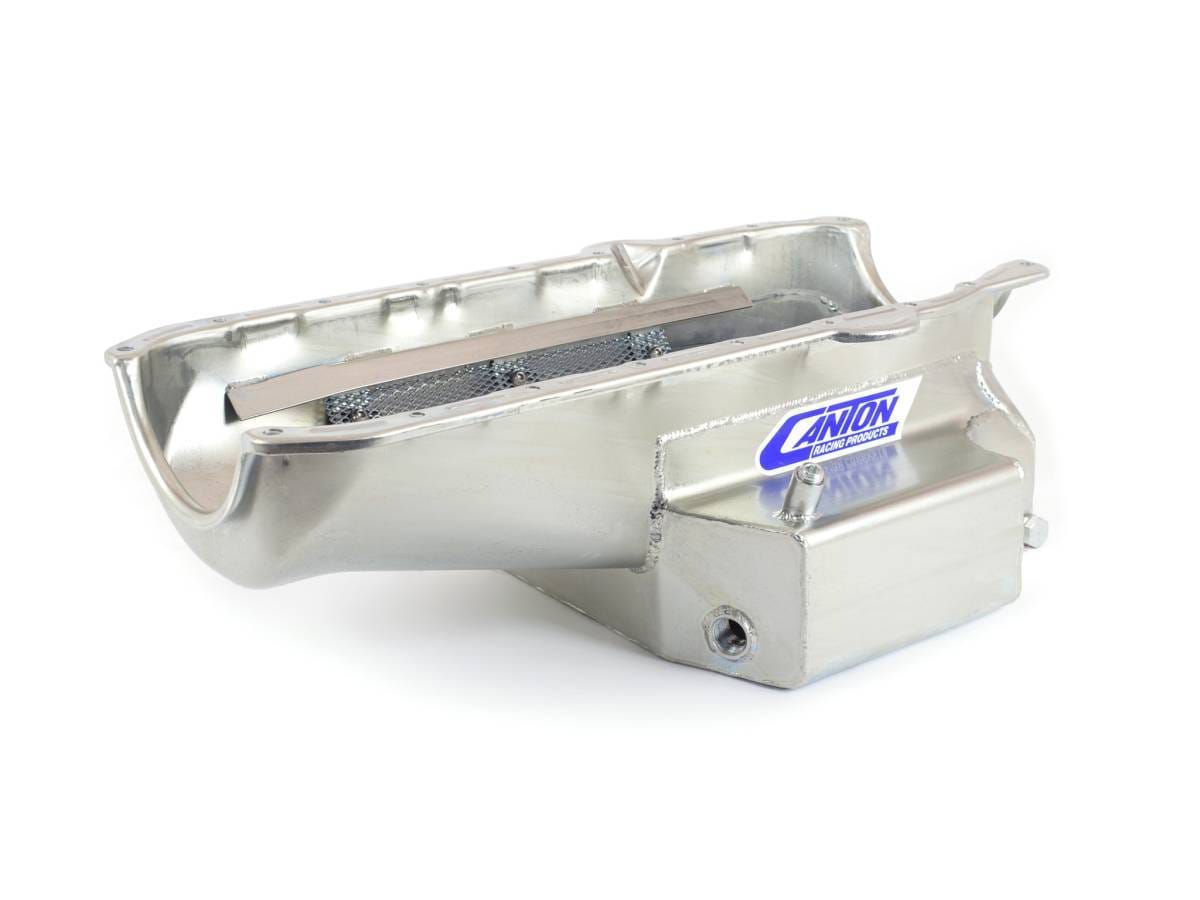

1986-Newer Sbc Shallow Circle Track 12" Long Wet Sump Canton Race Oil Pan

This Competition wet sump is for '86 and newer Small Block Chevys with one piece seals. Fits front steer chassis with both aftermarket and Camaro front ends, others when the engine is moved. Note: Requires Canton Pickup Part # 20-040, 20-42, 20-070, 20-072, 20-077, 20-071 or 20-100 Canton Pickup*
Features: 1986-Newer Small Block Chevys with one piece seals, 3.75 Stroke

Style: Designed for 1986-Newer, this pan is 7" deep so it fits well in a variety of chassis where low ground clearance is an issue.

Size: 7" deep, 15" wide, 12" long sump, and an 8 quart system capacity.

Oil Pan Part #: 11-120T for 1980-1985 Small Block Chevy Engines. Oil Pan Features:
8 qt System Capacity
3.75" Stroke Clearance

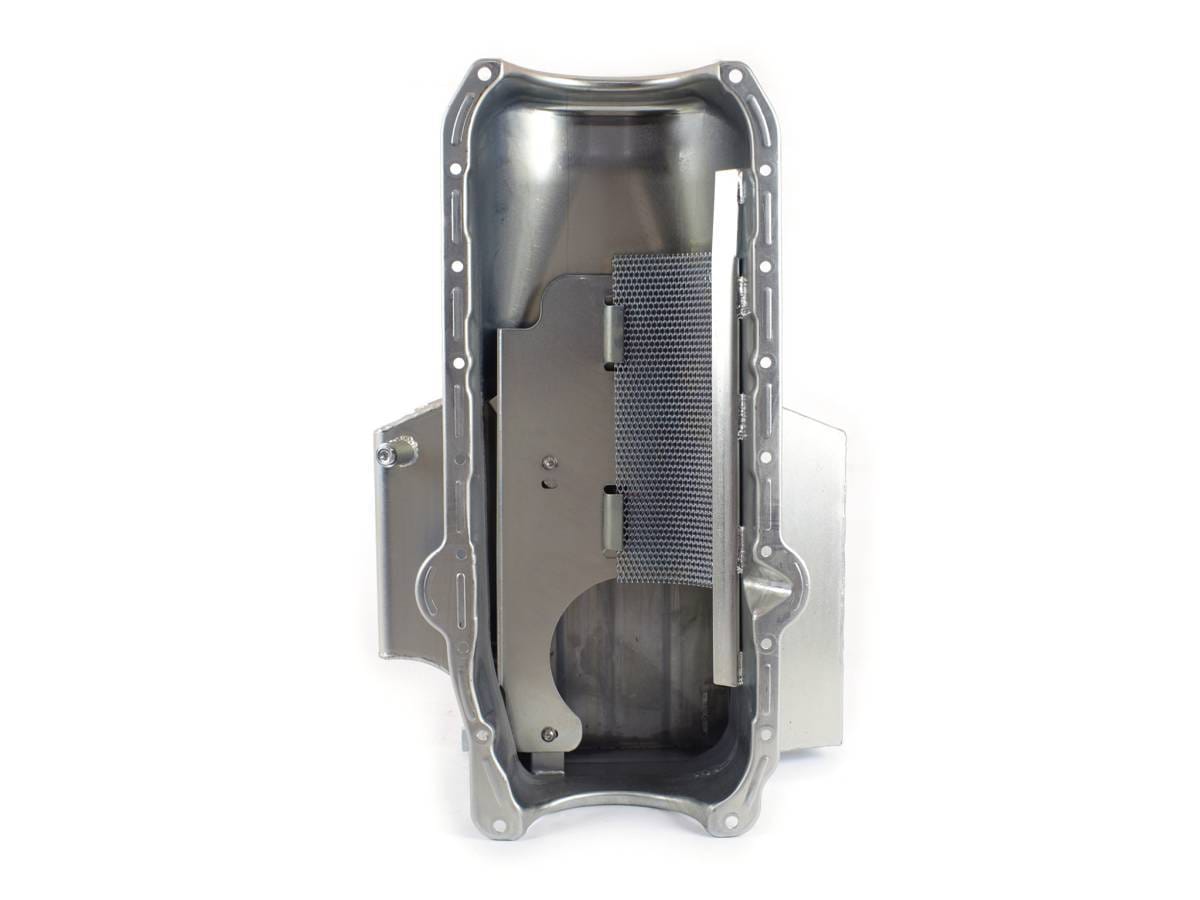

Six Trap Door Baffles & Three Runners
Crank Scraper
Bolt in Slosh Baffle
Built in Windage Tray
1/2” NPT Temperature Bung
Provision for our Pan Mounted Dipstick
Magnetic Drain Plug

Recommended Accessories: Oil Pump Pickups:
PART #: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
PART #: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
PART #: 20-070 - Pickup for Small Block High Volume Pumps M55HV
PART #: 20-072 - Pickup for Small block High Volume M155HV Pump w/ 3/4" Tube
PART #: 20-077 - Press In Pickup for M10552 & M10555 Pump
PART #: 20-071 - Flange Mount Pickup for M10552 & M10555 Pump
PART #: 20-100 - Pickup for Big Block 5 bolt pumps M77 & M77HV Gaskets:
PART #: 88-100 Gasket Oil Pan For Small Block Chevy Pre 1985 Universal Dip Sticks:

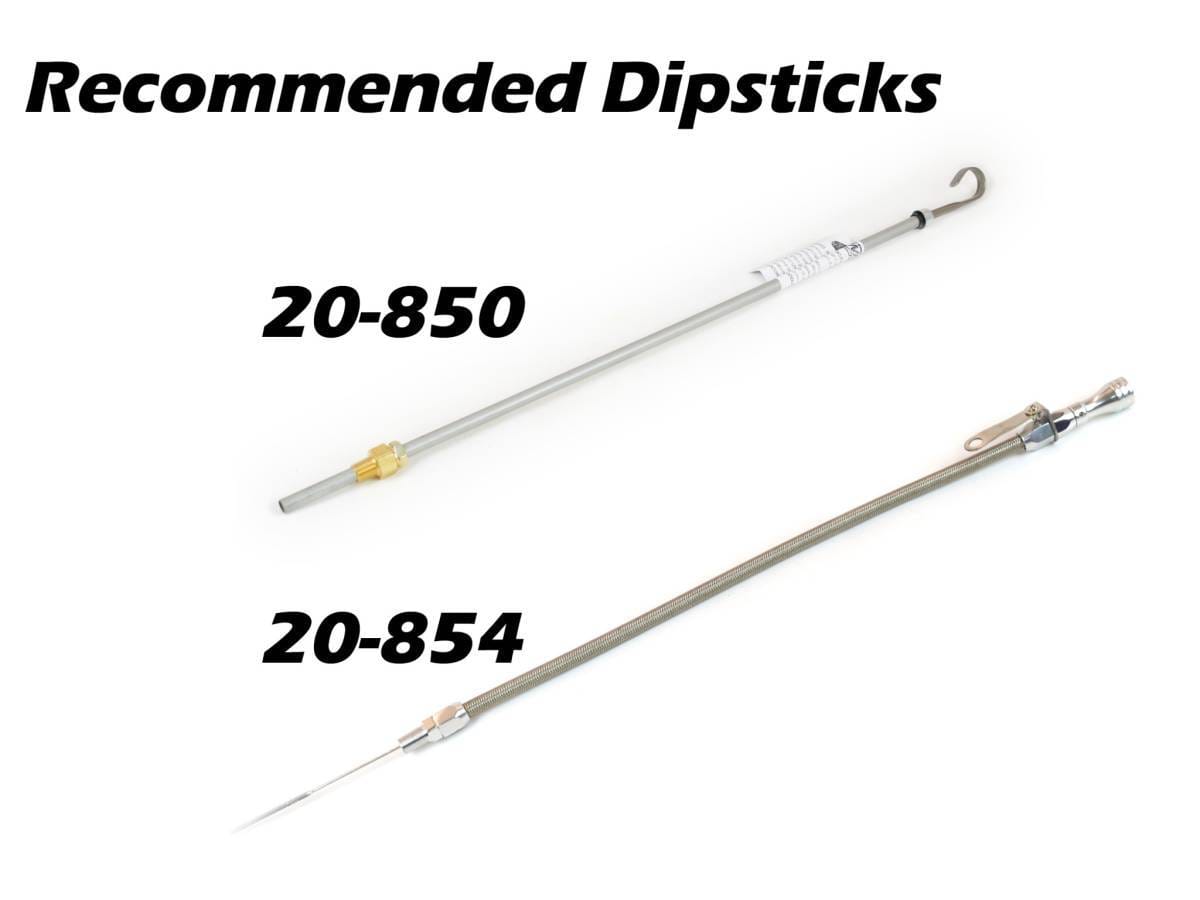

PART #: 20-850 - Universal Dipstick Kit 1/4” N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
