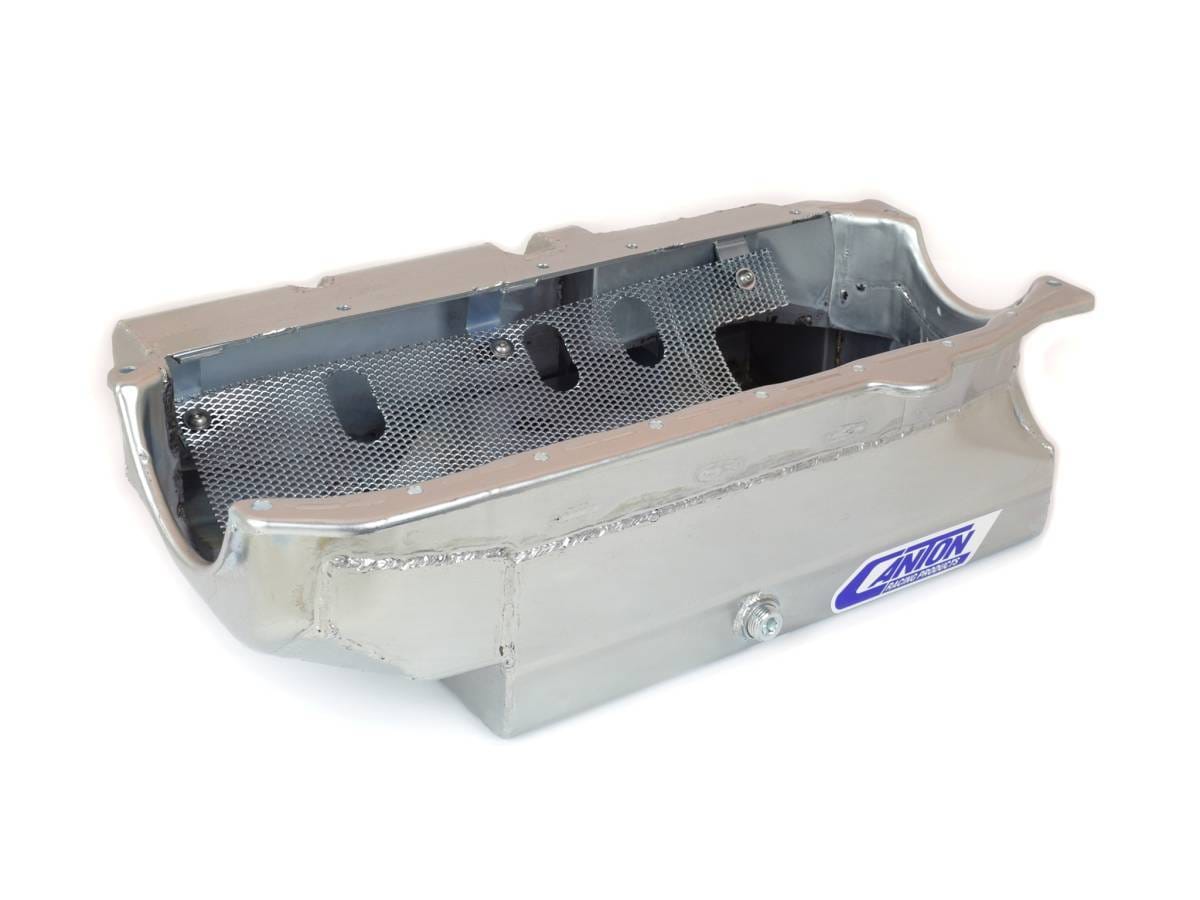

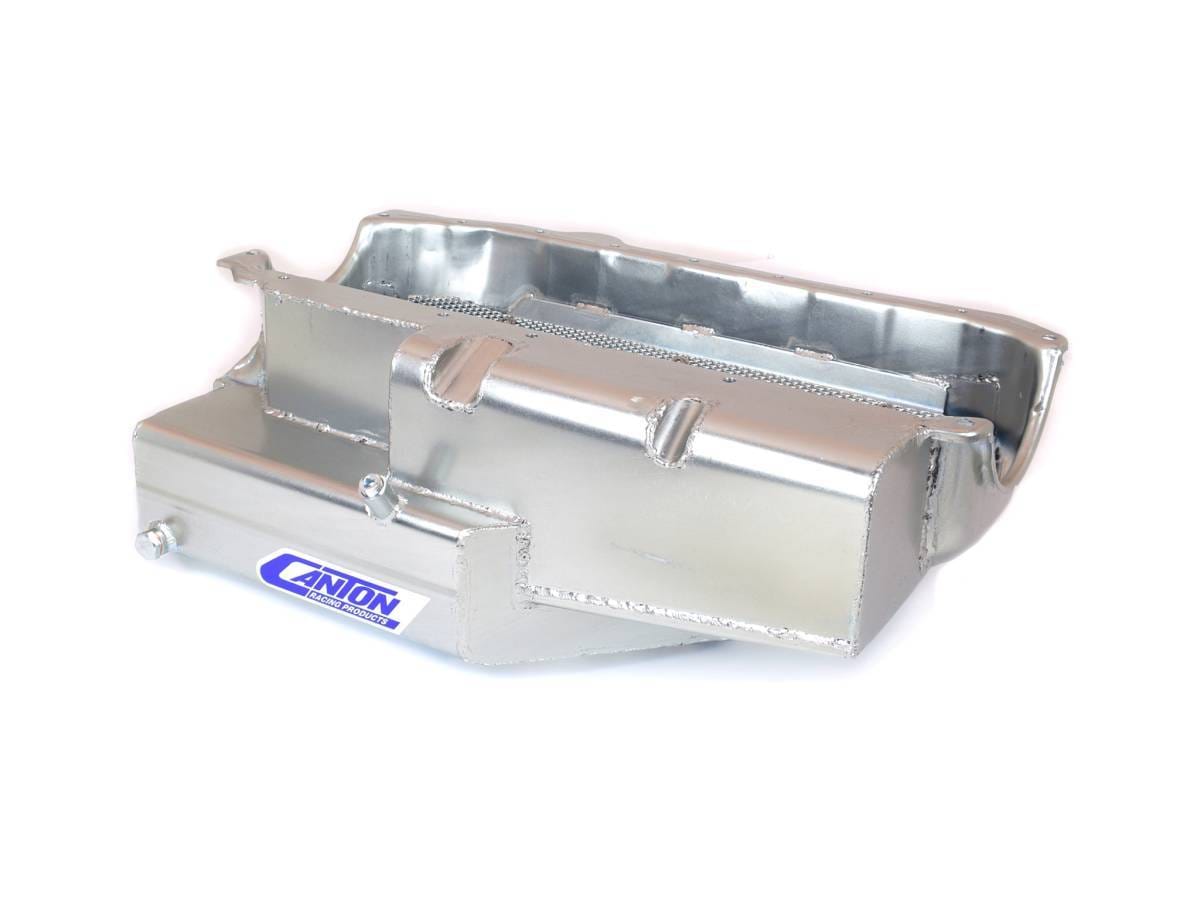

1985-Earlier Sbc Open Chassis Pro Wet Sump Canton Race Oil Pan

This open chassis "L" style steel wet sump pan is for 1985 and earlier Small Block Chevys. It is designed for chassis without x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). Note: Requires offset aftermarket starter and a 153 or 168 tooth flywheel. 20-914 Pro Louvered Windage Tray Upgrade Required for Dirt Racing. Requires Canton Pickup Part # 20-040, 20-42, 20-070, 20-072, 20-077, 20-071 or 20-100 Canton Pickup*
Features: 1985-Earlier Small Block Chevys, It is designed for chassis without x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models).

Style: Designed for 1985-Earlier, this pan is 7" deep so it fits well in a variety of chassis where low ground clearance is an issue.

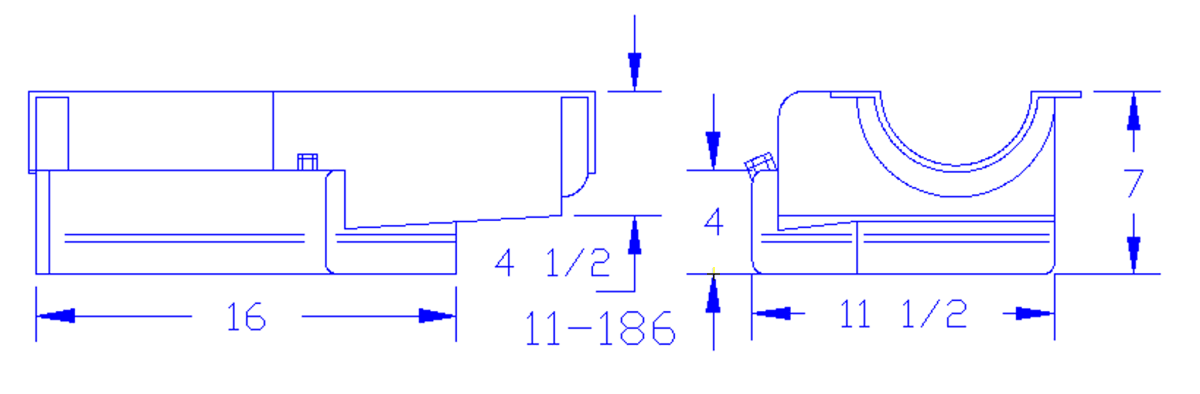

Size: 11.5" wide, 16" long, 7" deep wet sump with a 9 quart system capacity.

Oil Pan Part #: 11-186 for 1985-Earlier Small Block Chevy Engines. Oil Pan Features:
9 qt System Capacity
3.875" Stroke Clearance
Six Trap Door Baffles & Directional Oil Runners

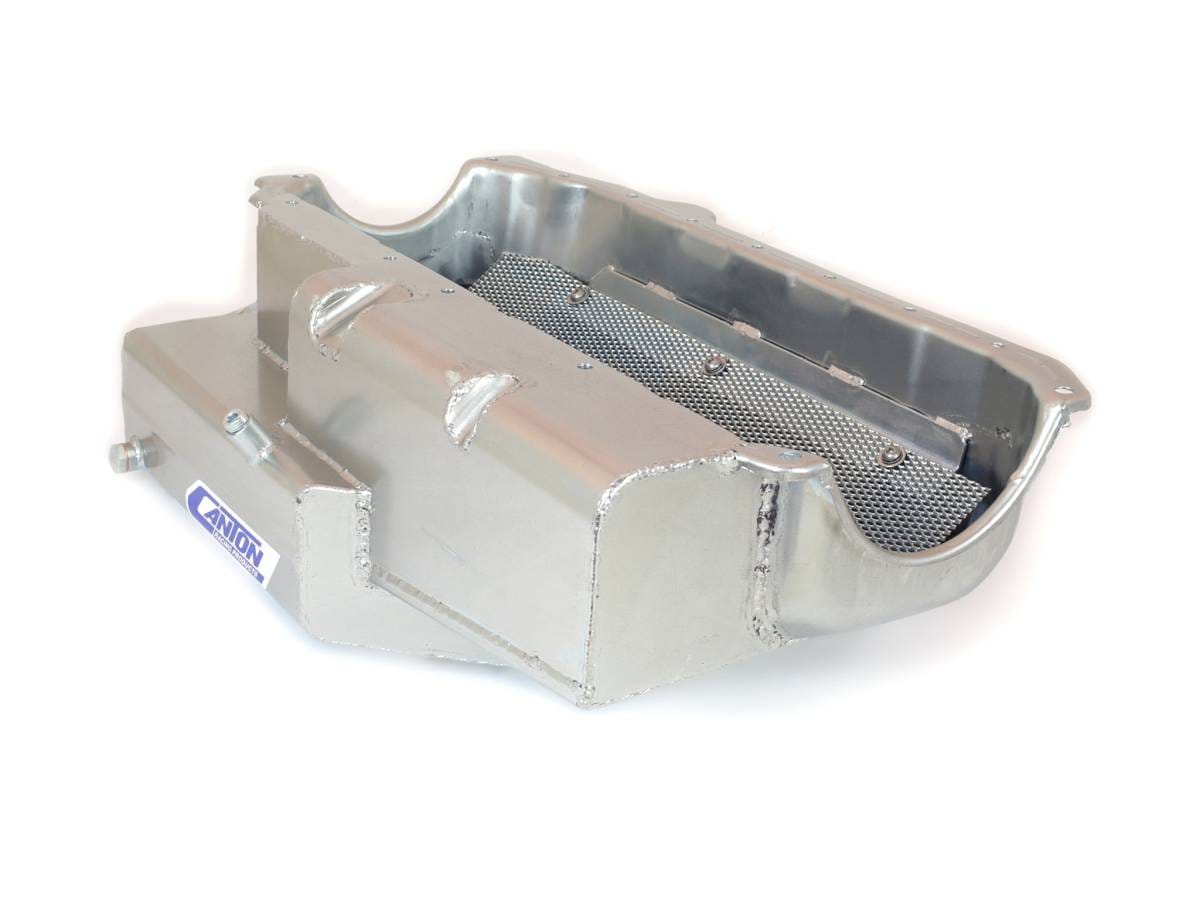

Pro Style Oil Recovery Pouch
Bolt in Slosh Baffle

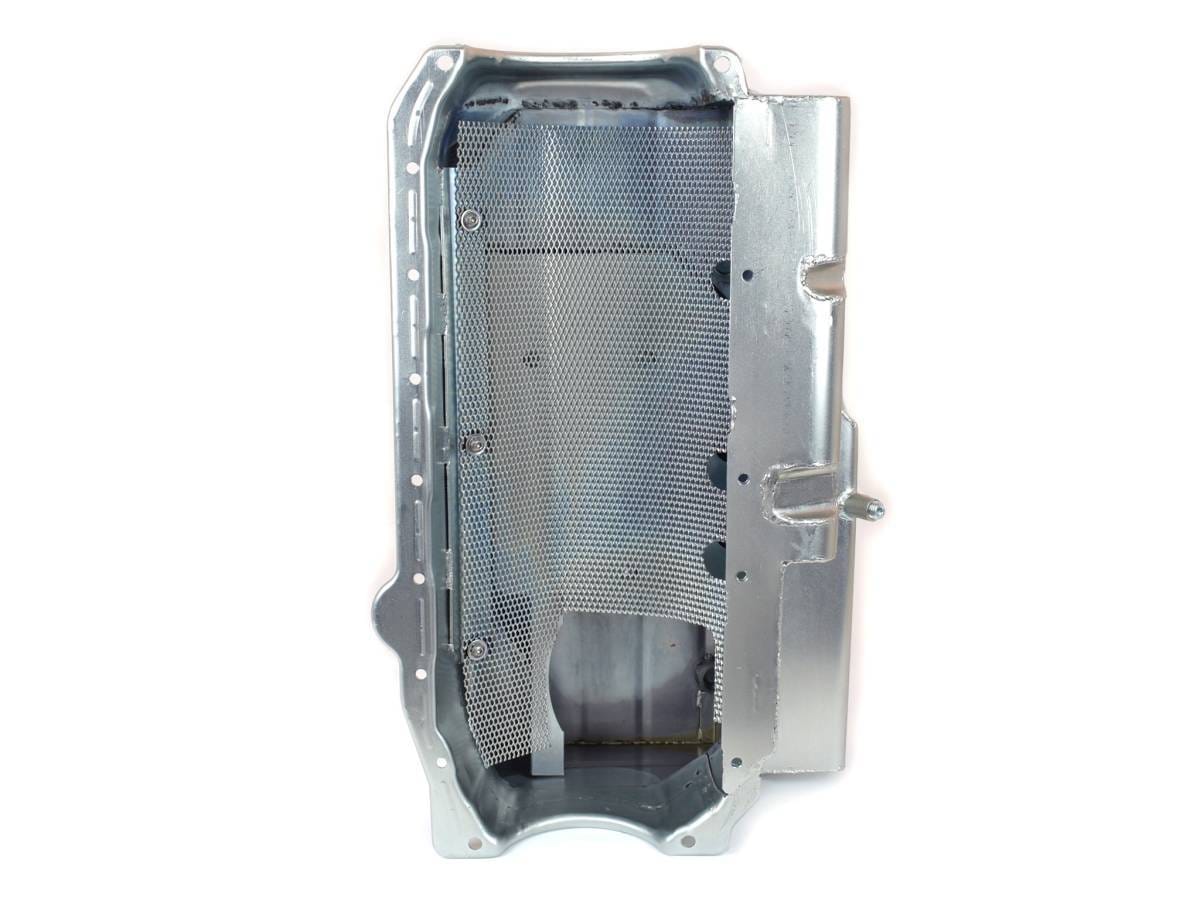

Built in Screen Windage Tray
1/2” NPT Temperature Bung
Provision for our Pan Mounted Dipstick
Magnetic Drain Plug

Recommended Accessories: Oil Pump Pickups:
PART #: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
PART #: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
PART #: 20-070 - Pickup for Small Block High Volume Pumps M55HV
PART #: 20-072 - Pickup for Small block High Volume M155HV Pump w/ 3/4" Tube
PART #: 20-077 - Press In Pickup for M10552 & M10555 Pump
PART #: 20-071 - Flange Mount Pickup for M10552 & M10555 Pump
PART #: 20-100 - Pickup for Big Block 5 bolt pumps M77 & M77HV Gaskets:
PART #: 88-100 - 1 Piece SBC Pre-85' Oil Pan Gasket

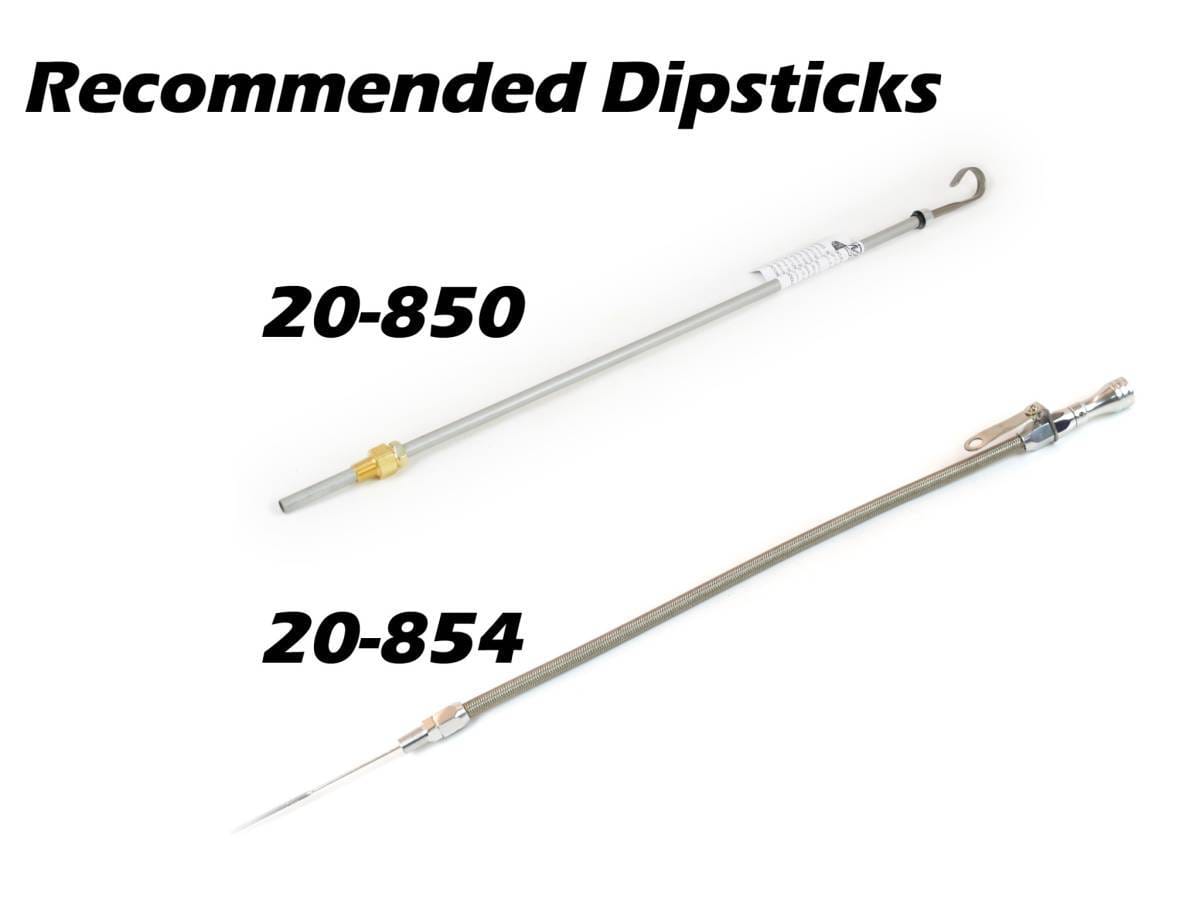

PART #: 88-102 - 4 Piece SBC Pre-85' Oil Pan Gasket Universal Dip Sticks:
PART #: 20-850 - Universal Dipstick Kit 1/4” N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
