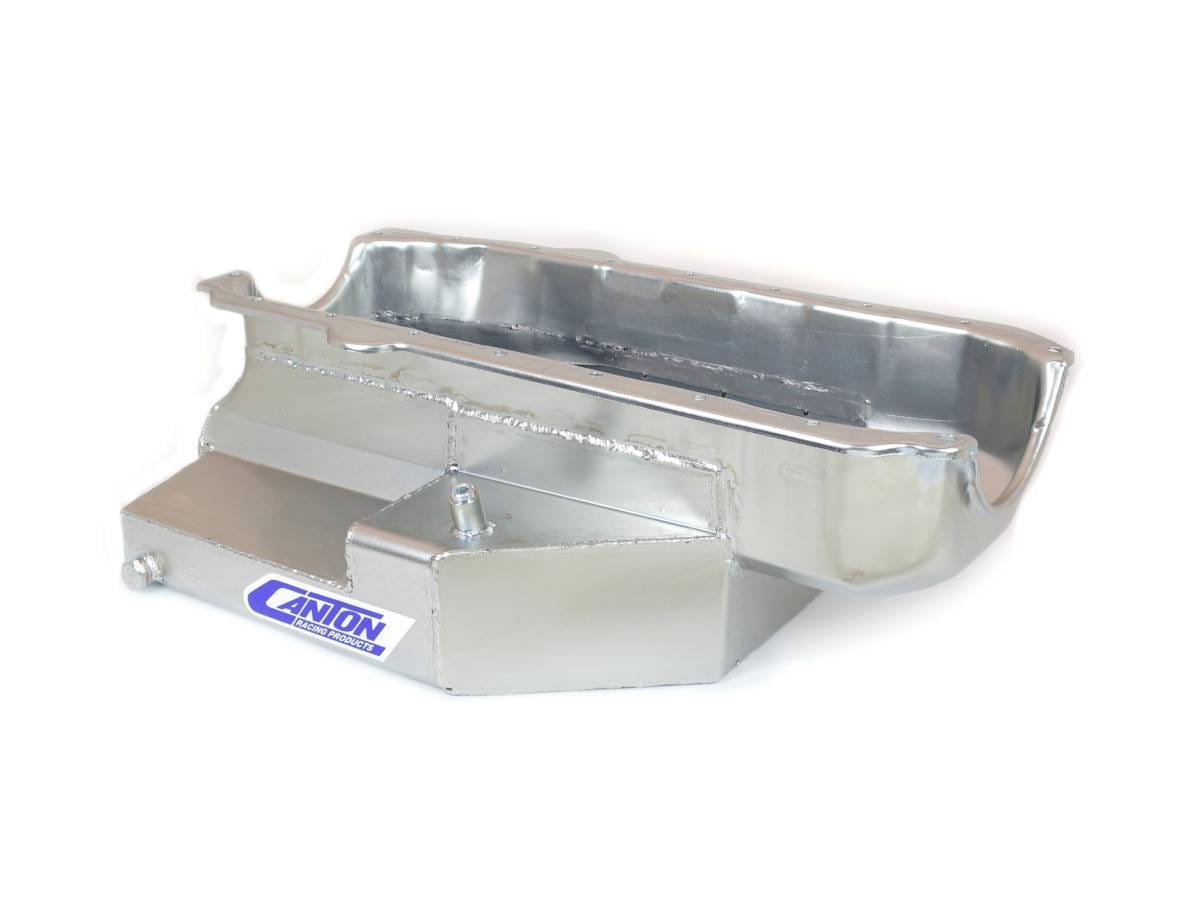

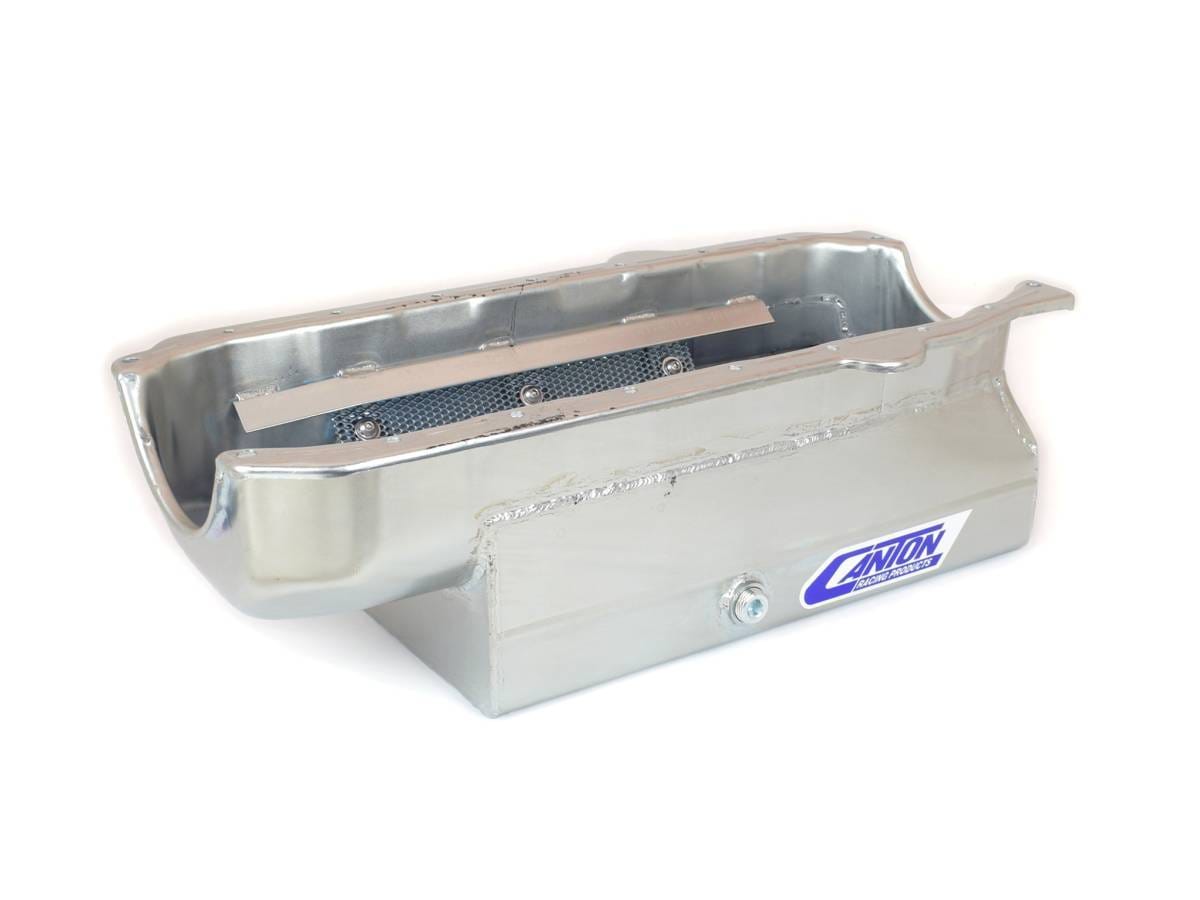

1985-Earlier Sbc Circle Track Open Chassis Canton Race Oil Pan

This SBC competition open chassis wet sump is for 1985 and earlier Small Block Chevys. It is designed for chassis without any x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). Note: Requires Canton Pickup Part # 20-040, 20-42, 20-070, 20-072, 20-077, 20-071 or 20-100 Canton Pickup*
Features: 1985-Earlier Small Block Chevys with left side dipstick, It is designed for Chassis without any x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models)

Style: Designed for 1985-Earlier, this pan is 7" deep so it fits well in a variety of chassis where low ground clearance is an issue.

Size: 11-1/2" wide, 16" long 7" deep wet sump, and a 9 quart system capacity

Oil Pan Part #: 11-180 for 1985-Earlier Small Block Chevy Engines. Oil Pan Features:
9 qt System Capacity
3.875" Stroke Clearance

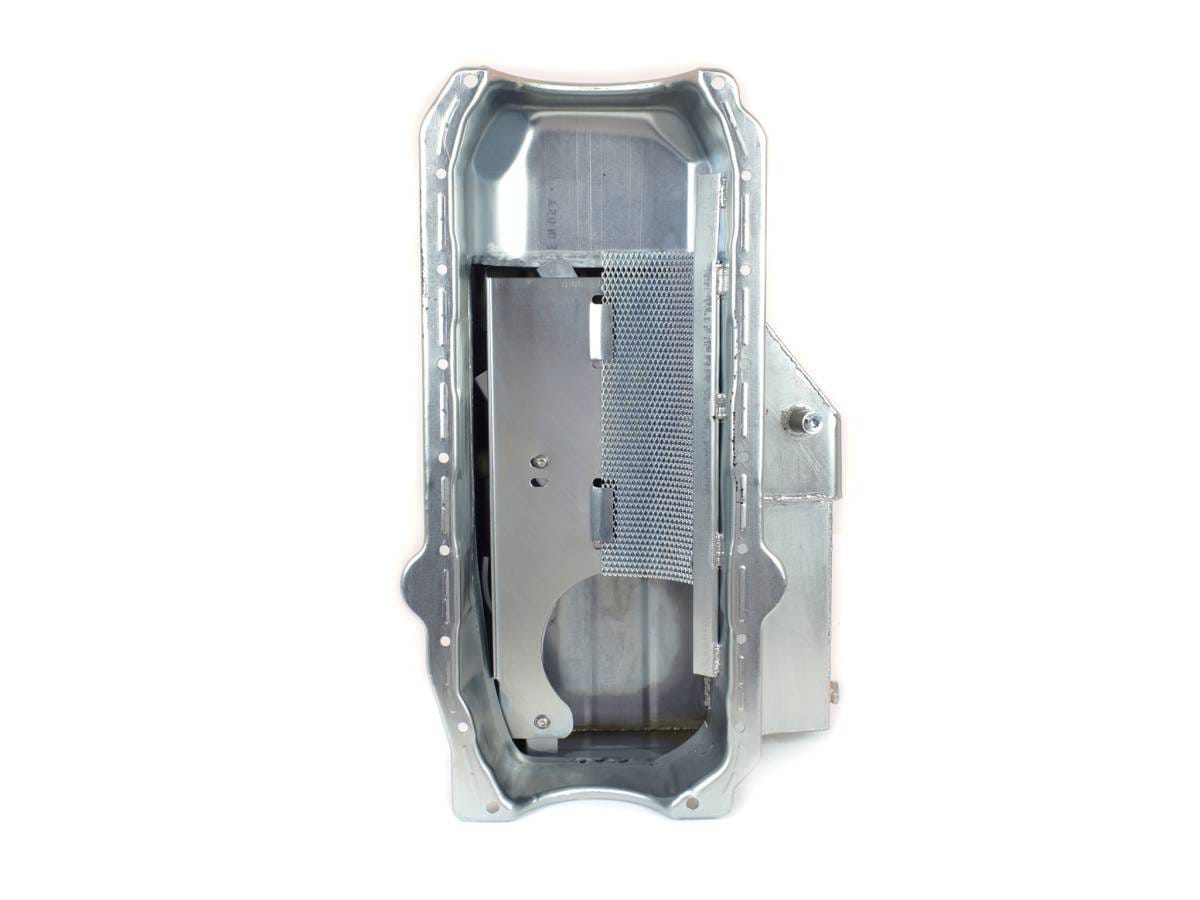

Six Trap Door Baffles & Three Runners
Crank Scraper

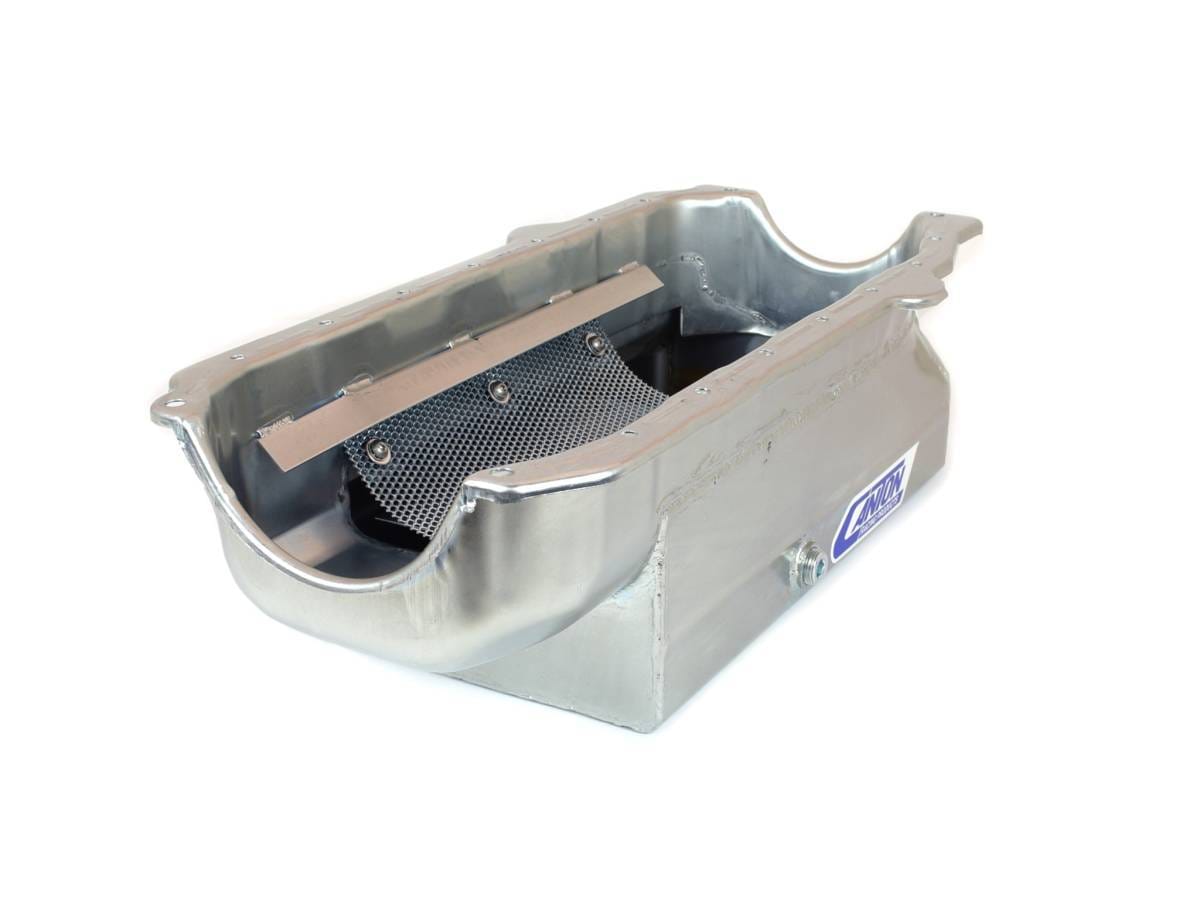

Bolt in Screen Windage Tray
1/2” NPT Temperature Bung
Provision for our Pan Mounted Dipstick
Magnetic Drain Plug

Recommended Accessories: Oil Pump Pickups:
PART #: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
PART #: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
PART #: 20-070 - Pickup for Small Block High Volume Pumps M55HV
PART #: 20-072 - Pickup for Small block High Volume M155HV Pump w/ 3/4" Tube
PART #: 20-077 - Press In Pickup for M10552 & M10555 Pump
PART #: 20-071 - Flange Mount Pickup for M10552 & M10555 Pump
PART #: 20-100 - Pickup for Big Block 5 bolt pumps M77 & M77HV Oil Pan Studs:
PART #: 22-300 - SBC Oil Pan Stud Kit Gaskets:
PART #: 88-100 - 1 Piece SBC Pre-85' Oil Pan Gasket
PART #: 88-102 - 4 Piece SBC Pre-85' Oil Pan Gasket Universal Dip Sticks:

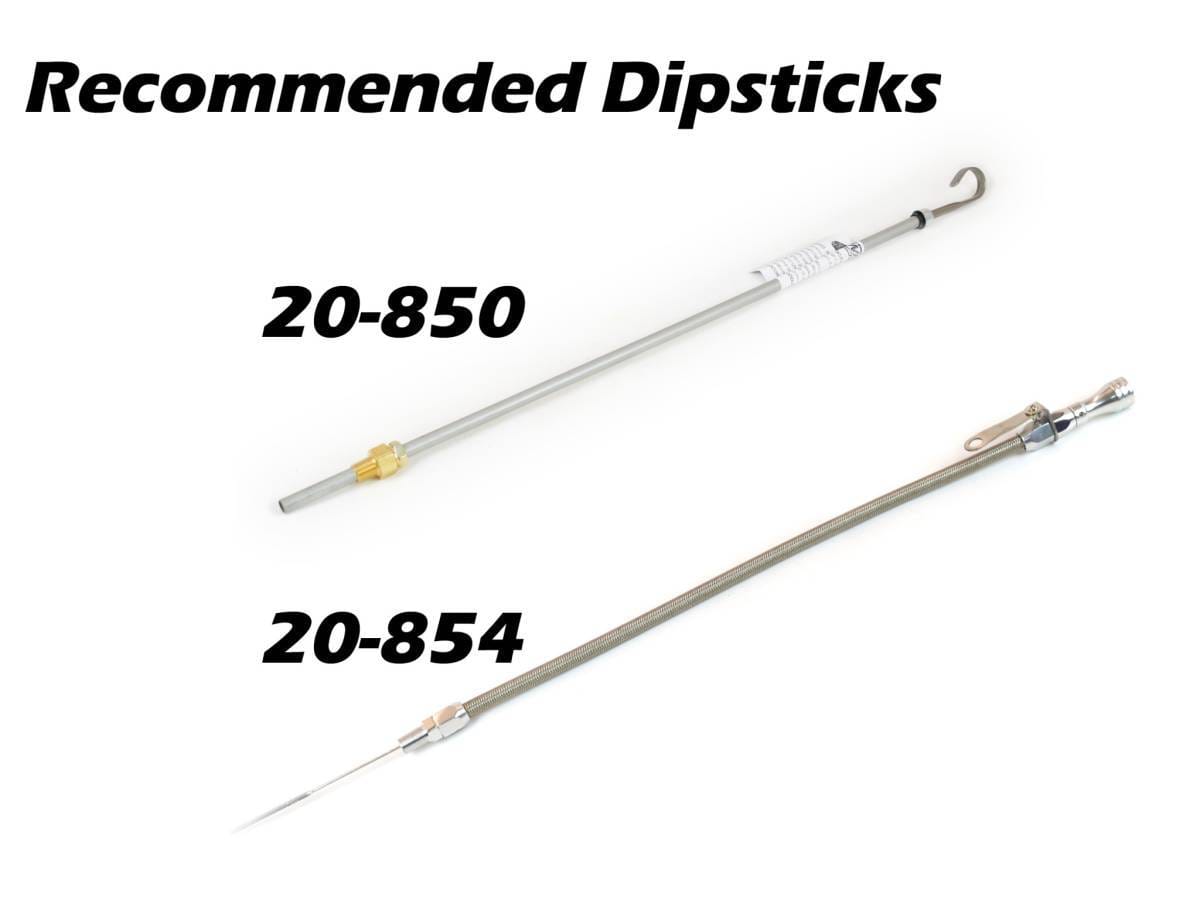

PART #: 20-850 - Universal Dipstick Kit 1/4” N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting

Install Instructions
