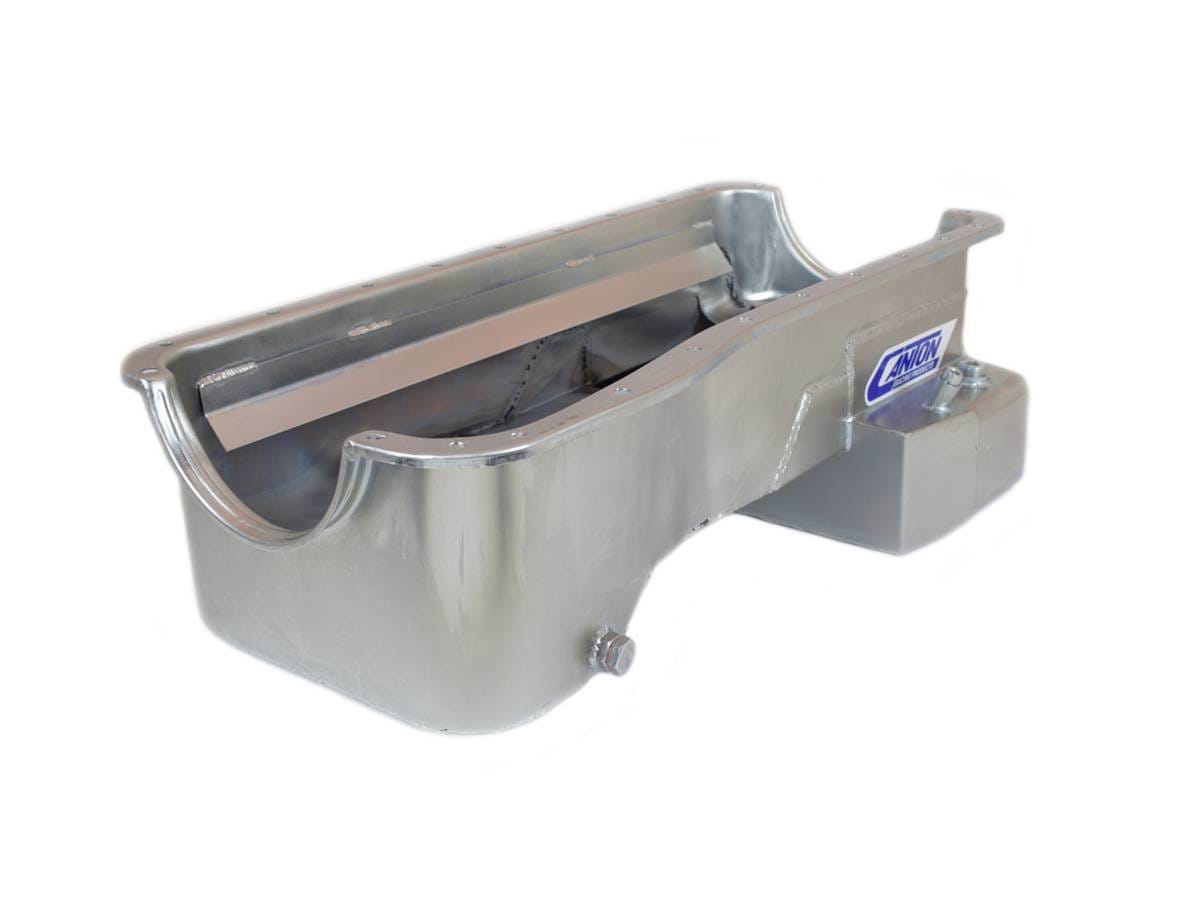

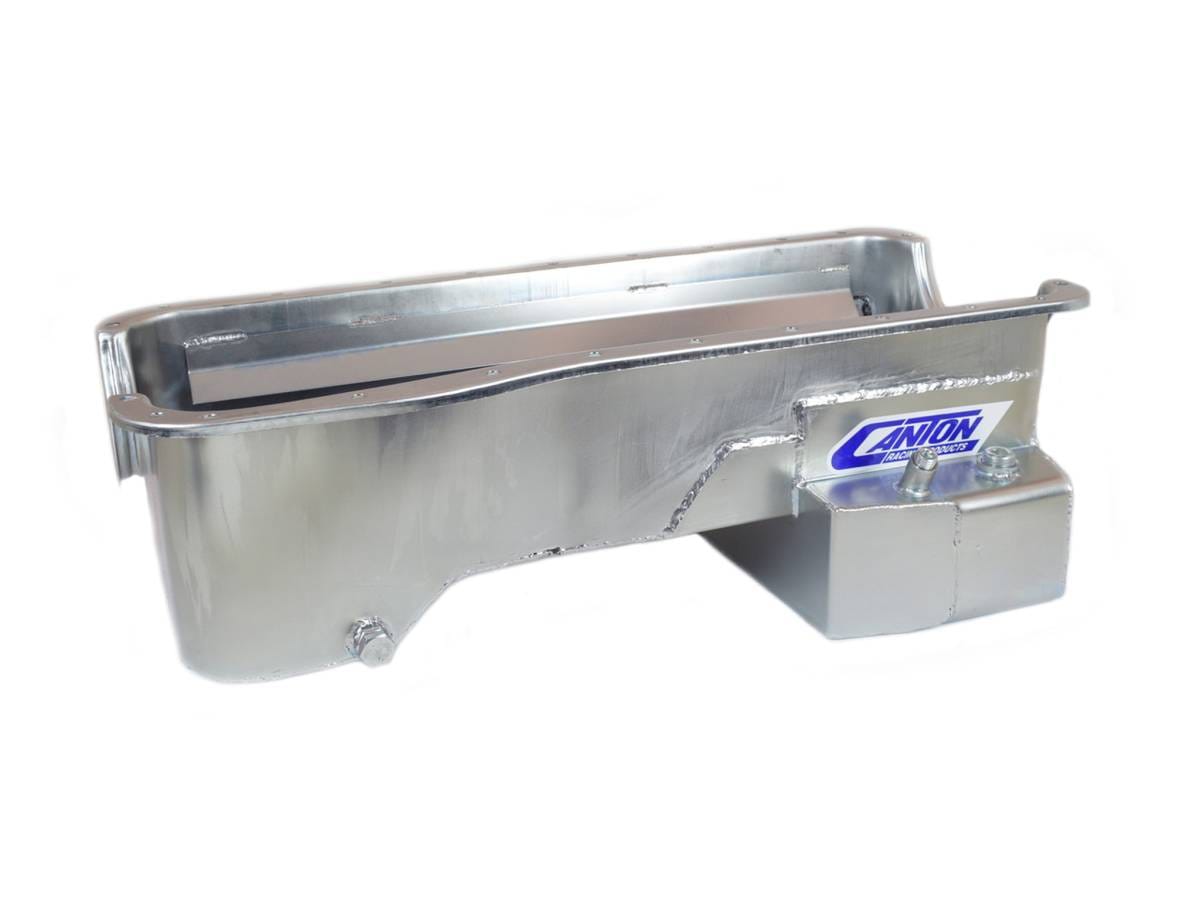

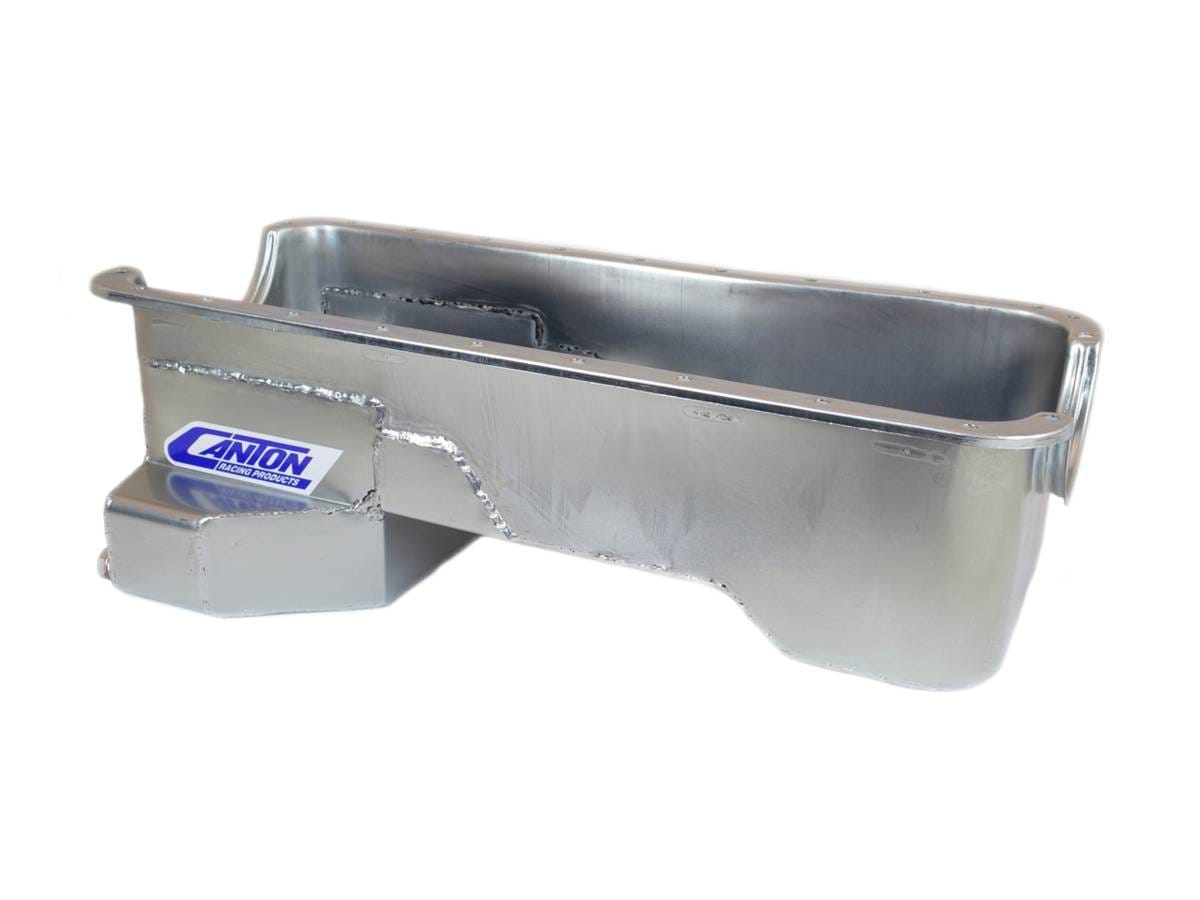

1979+ Ford Mustang Big Block Ford 429-460 Road Race Rear T Sump Oil Pan

This T style rear sump road race baffled oil pan is designed for Ford 429-460 engines in 1979 and up Mustangs and other rear sump applications, such as Cobra Kits. It has a 7-1/2" deep by 8" long by 13-1/2" wide sump with a 7 quart system capacity. This pan requires our 15-775 pickup & M84DHV Oil pump. Note: This pan requires our 15-775 pickup & M84DHV Oil pump..

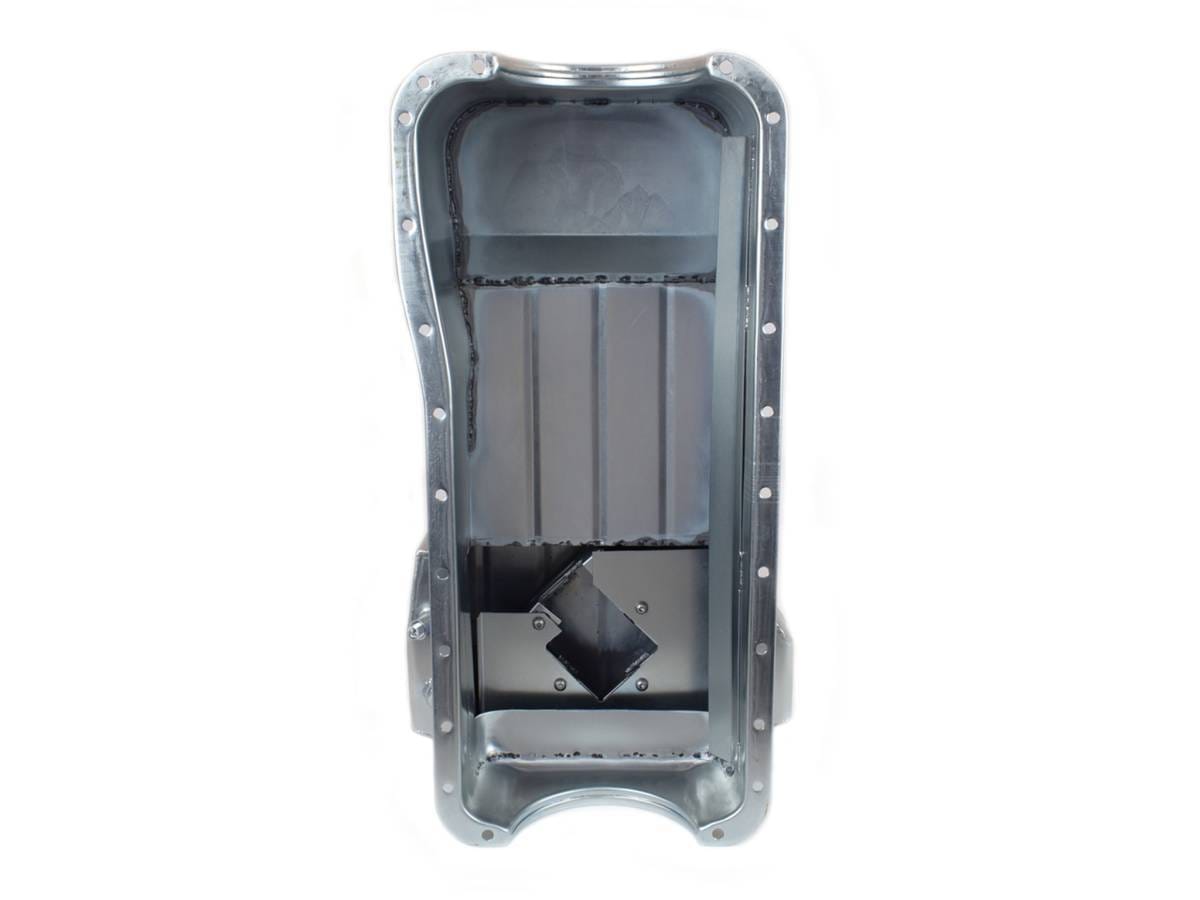

FEATURES: Diamond Shape Road Race Trap Door Baffle Assembly, Crank Scraper, Removable Windage/Anti-Slosh Baffle, 1/2" NPT Temperature Bung, Provision For Our Pan Mounted Dipstick, Magnetic Drain Plug

SIZE: 7-1/2" deep by 8" long by 13-1/2" wide sump with a 7 quart system capacity.

OIL PAN PART #: 15-774 for Big Block Ford 429-460

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUP:
PART #: 15-775 - BBF Pickup
PART #: 20-956 - Pickup Mounting Stud for 429-460 Based Engine

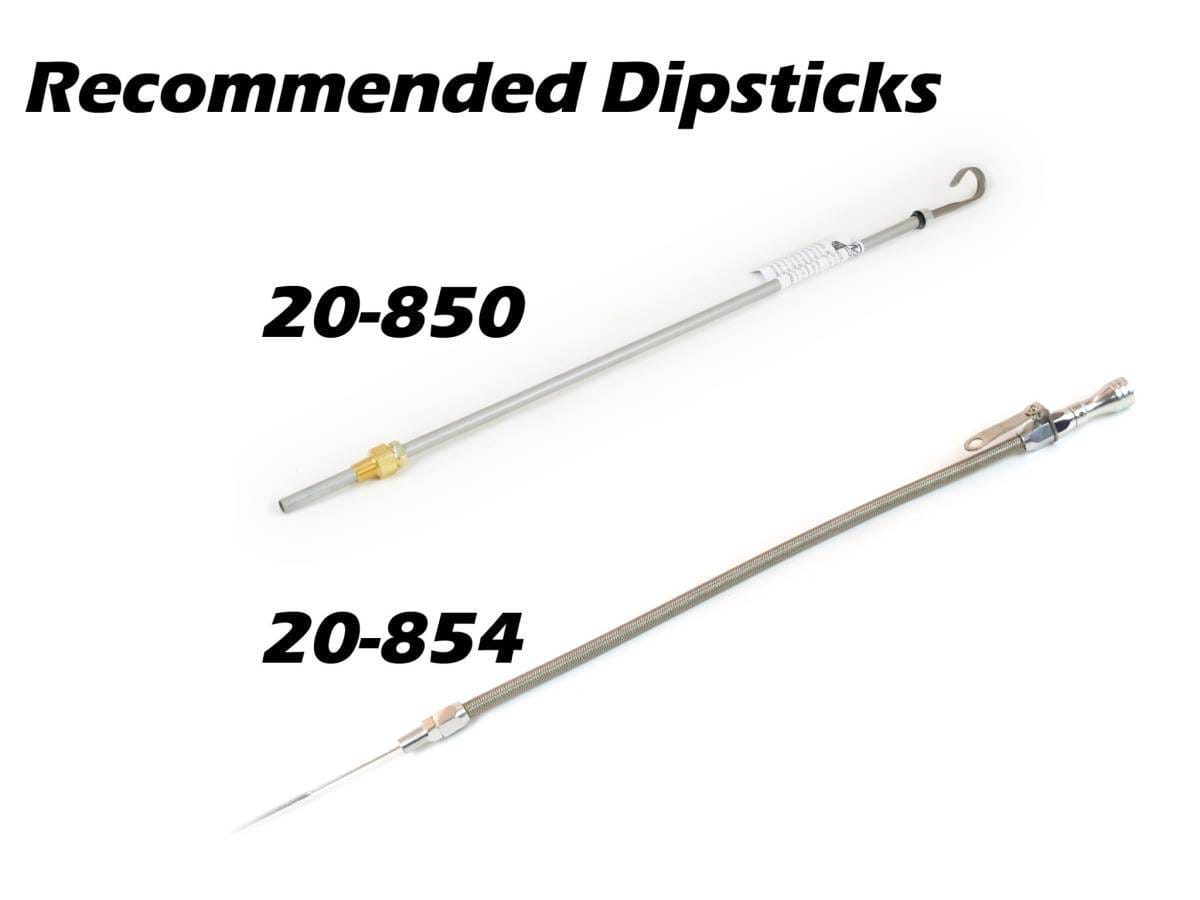

PART #: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
PART #: 88-750 - Big Block Ford 429-460 Four Piece Oil Pan Gasket
